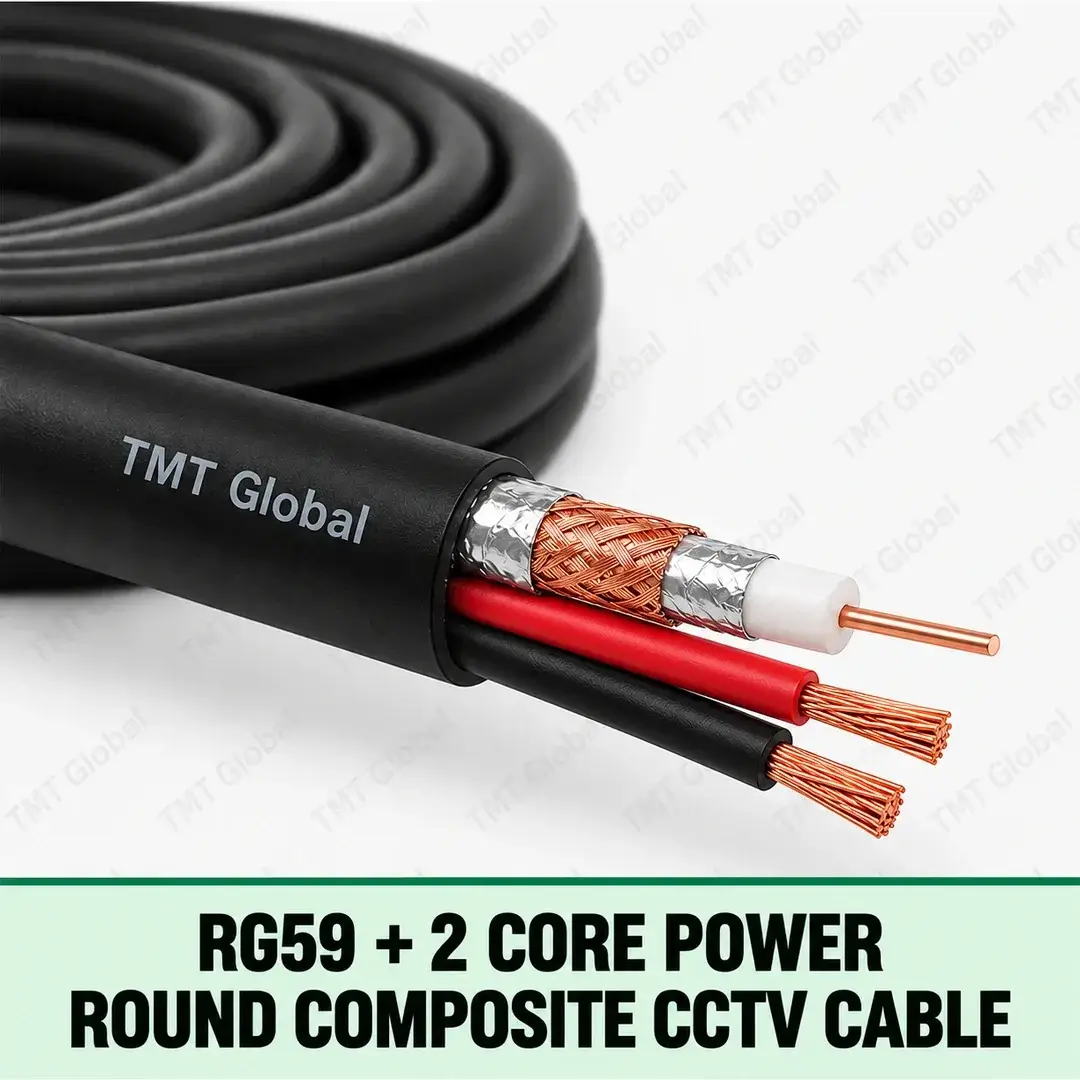

RG59 + 2 Core Power Round Composite CCTV Cable
KEY FEATURES
- CCTV-specific controlled construction
- RG59 75 Ω coaxial video element
- Common-jacket composite format
- 305 m standard package
- Factory evidence required for electrical values
Description
TMT Global RG59 + 2 Core Power Round Composite CCTV Cable Series
TMT Global RG59 + 2 Core Power Round Composite CCTV Cable is designed for professional security and surveillance installations. Single-jacket round composite alternative to the classic shotgun cable, keeping RG59 video and two power conductors together where a circular pulling profile is preferred. It is controlled as one physical product family, with the exact jacket, colour and permitted AWG selected through the TMT Series ordering rows.
KEY FEATURES
- CCTV-specific controlled construction
- RG59 75 Ω coaxial video element
- Common-jacket composite format
- 305 m standard package
- Factory evidence required for electrical values
APPLICATIONS
- Conduit camera routes
- Compact CCTV bundles
- Indoor/outdoor camera feeds
Technical Specifications
| PARAMETER | VALUE |
| Product family | RG59 + 2 Core Power Round Composite CCTV Cable |
| Series | RG59-RND-CV |
| Coaxial element | RG59 coaxial video element |
| Auxiliary section | 18 / 20 AWG × 2C power section |
| Cable geometry | Round common-jacket composite |
| Conductor material | Bare copper |
| Outer-jacket options | PVC / LSZH / PE Outdoor |
| Standard colours | Black / White |
| Standard package | 305 m |
| Product format | Bulk round CCTV video + power composite cable |
| Series reference | Exact item codes and jacket / colour variants are listed on Ordering Information (Page C). |
AWG / NOMINAL AREA / SERIES AVAILABILITY
| AWG | NOMINAL AREA (mm²) | SERIES AVAILABILITY |
| 18 AWG | 0.823 | PVC / LSZH / PE Outdoor |
| 20 AWG | 0.518 | PVC / LSZH / PE Outdoor |
Additional information
| AWG | 18 awg, 20 awg |
|---|---|
| Brand | TMT Global |
| Colour | Black, White |
| Jacket Type | LSZH, PE Outdoor, PVC |
| Length | 305 m |
Ordering Information
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| RG59 + 2 Core Power Round Composite CCTV Cable | RG59-RND-CV | 18 awg | PVC | Black | 305 m |  | |
| RG59 + 2 Core Power Round Composite CCTV Cable | RG59-RND-CV | 18 awg | PVC | White | 305 m | | |
| RG59 + 2 Core Power Round Composite CCTV Cable | RG59-RND-CV | 18 awg | LSZH | Black | 305 m | | |
| RG59 + 2 Core Power Round Composite CCTV Cable | RG59-RND-CV | 18 awg | LSZH | White | 305 m | | |
| RG59 + 2 Core Power Round Composite CCTV Cable | RG59-RND-CV | 18 awg | PE Outdoor | Black | 305 m | | |
| RG59 + 2 Core Power Round Composite CCTV Cable | RG59-RND-CV | 20 awg | PVC | Black | 305 m | | |
| RG59 + 2 Core Power Round Composite CCTV Cable | RG59-RND-CV | 20 awg | PVC | White | 305 m | | |
| RG59 + 2 Core Power Round Composite CCTV Cable | RG59-RND-CV | 20 awg | LSZH | Black | 305 m | | |
| RG59 + 2 Core Power Round Composite CCTV Cable | RG59-RND-CV | 20 awg | LSZH | White | 305 m | | |
| RG59 + 2 Core Power Round Composite CCTV Cable | RG59-RND-CV | 20 awg | PE Outdoor | Black | 305 m | |
