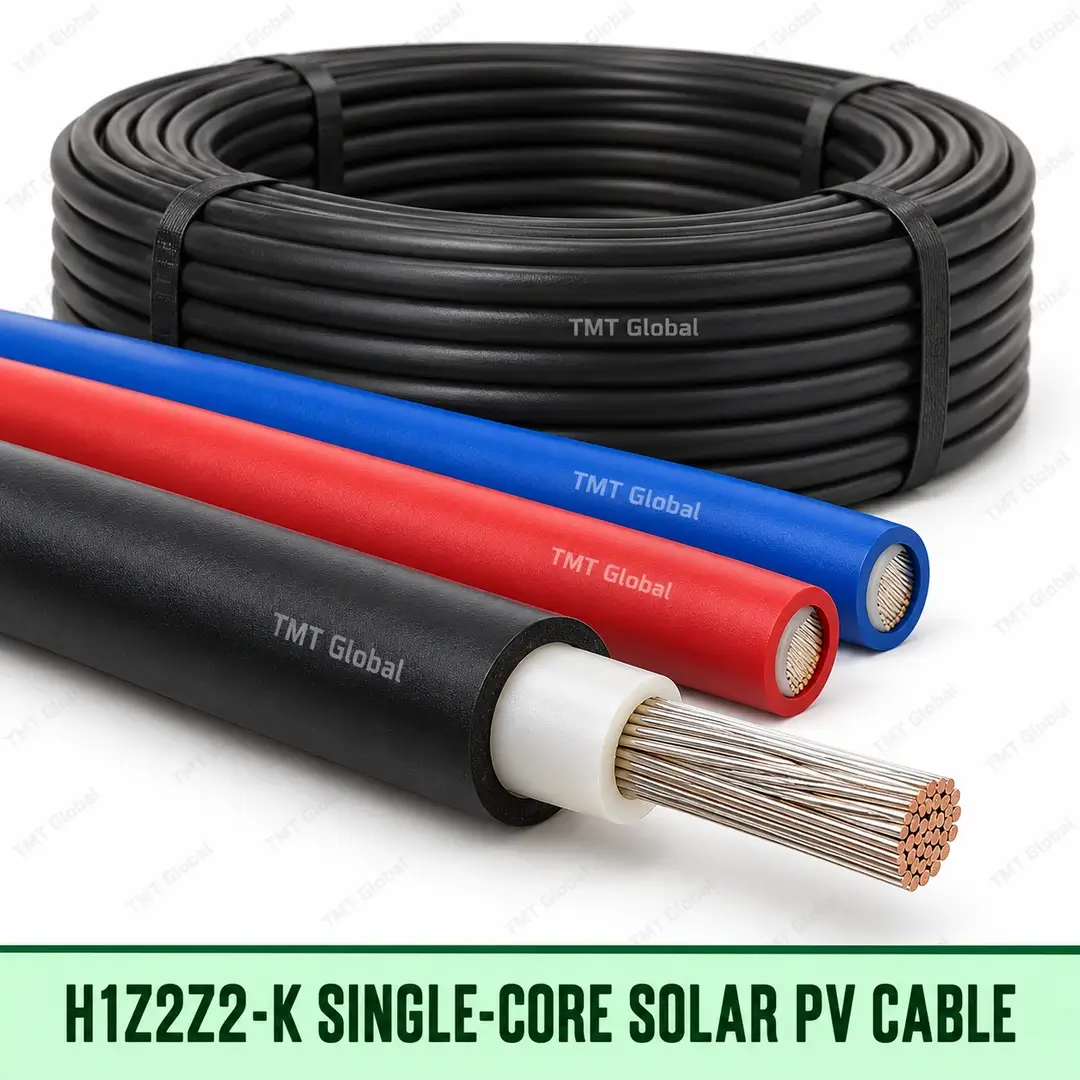

H1Z2Z2-K Single-Core Solar PV Cable
KEY FEATURES
- Single-core, cross-linked insulation and cross-linked outer sheath
- Fine-stranded tinned-copper conductor for flexible installation
- Black, red and blue sheath colours for DC identification
- UV, ozone and weather-resistance target for outdoor PV service
- Halogen-free / low-smoke claims only after released compound evidence
- Exact searchable SKU for every size and colour combination
Description
TMT Global H1Z2Z2-K Single-Core Solar PV Cable Series
TMT Global H1Z2Z2-K Single-Core Solar PV Cable is a configurable Solar PV cable family. Primary IEC/European-market solar DC cable for module strings, combiner boxes, inverter links and utility-scale PV arrays. The WooCommerce product page fixes the standards and physical construction family, while the TMT Series ordering table provides the exact conductor-size and outer-colour SKU for customer search, quotation and project selection.
KEY FEATURES
- Single-core, cross-linked insulation and cross-linked outer sheath
- Fine-stranded tinned-copper conductor for flexible installation
- Black, red and blue sheath colours for DC identification
- UV, ozone and weather-resistance target for outdoor PV service
- Halogen-free / low-smoke claims only after released compound evidence
- Exact searchable SKU for every size and colour combination
TYPICAL APPLICATIONS
- PV module interconnection
- Combiner-to-inverter DC links
- String-to-combiner wiring
- Rooftop, commercial and utility-scale PV systems
Technical Specification
| TECHNICAL SPECIFICATION | VALUE |
| Product type | Single-core photovoltaic DC cable |
| Standards reference | H1Z2Z2-K / EN 50618 family; IEC 62930 photovoltaic-cable reference |
| Rated voltage | 1.5 kV DC class |
| Conductor | Fine-stranded tinned copper |
| Nominal conductor sizes | 1.5 / 2.5 / 4 / 6 / 10 / 16 / 25 / 35 / 50 / 70 / 95 / 120 / 150 / 185 / 240 mm² |
| Insulation | Cross-linked special compound |
| Outer sheath | Cross-linked special compound |
| Outer colours | Black / Red / Blue |
| Cable form | Single core |
| Typical applications | PV module, string, combiner and inverter DC links |
| Packaging | Coils / reels / drums according to size; project cuts by Series row |
| Series availability | 45 exact Series items: 15 conductor sizes × 3 colours |
TECHNICAL REFERENCE / SERIES AVAILABILITY
