Cat8 S/FTP 8X3SMSLXXX Series | 23 AWG Network Patch Cord
Features
- Snagless shielded RJ45 connectors, 360° shield termination
- Individually foil-shielded pairs plus overall braided shield
- Premium tmt copper conductors
- Multiple colours
- Multiple lengths
- Halogen-free LSZH jacket construction
- CE marked
- Euroclass Cca-s1b,d2,a2 fire rated (EN 13501-6 / BS EN 13501-6)
- IEC/EN 60332-1-2 flame retardant tested
- Factory tested

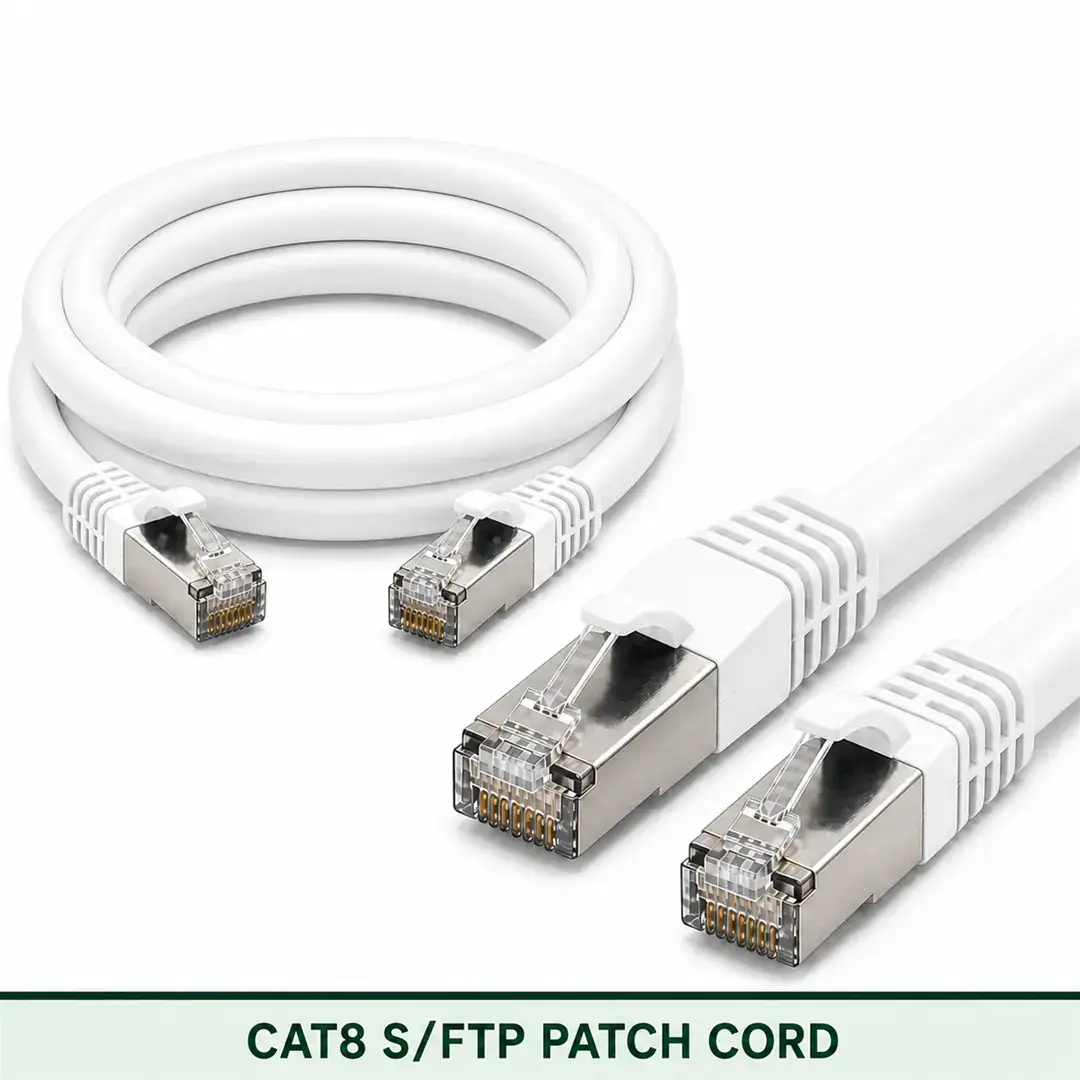

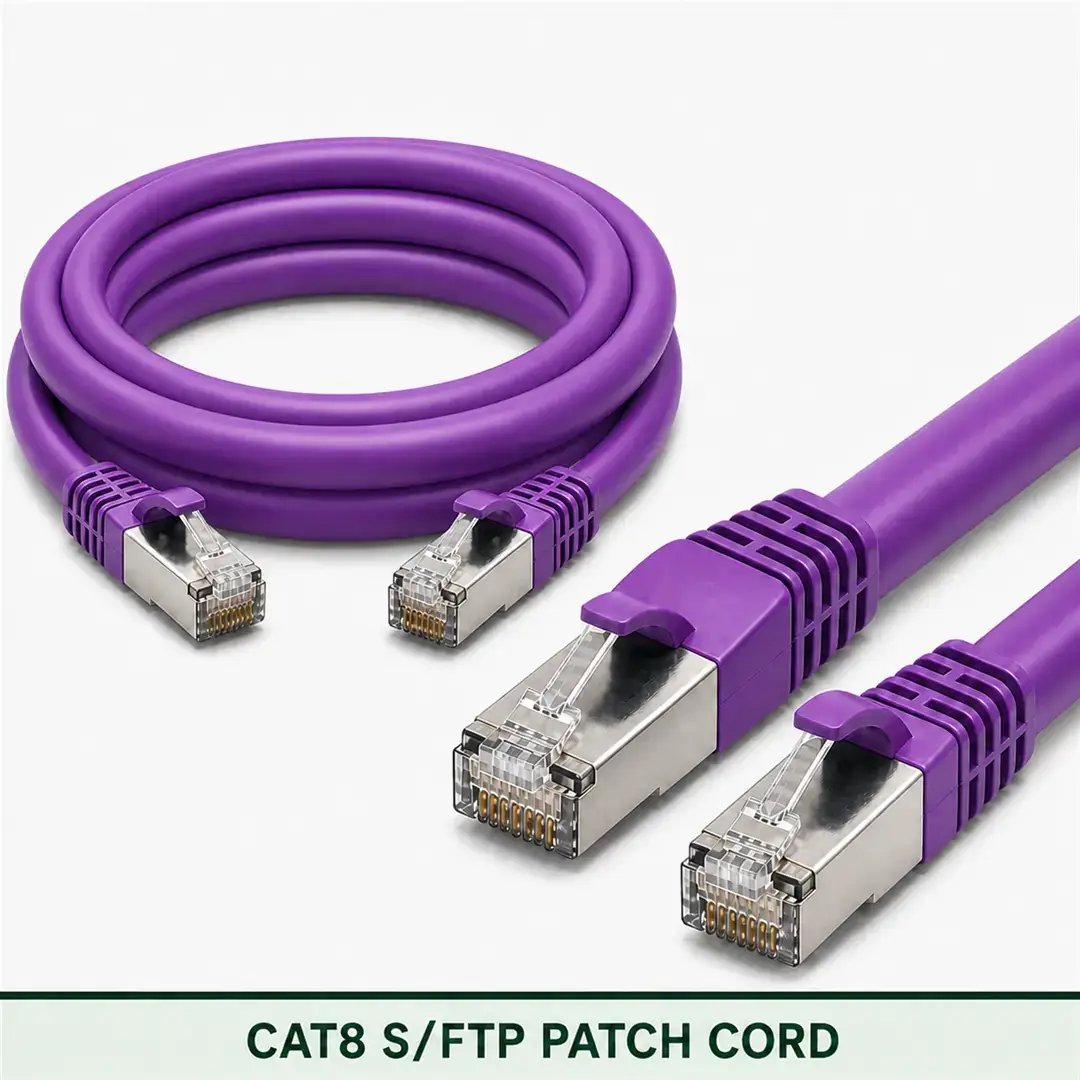

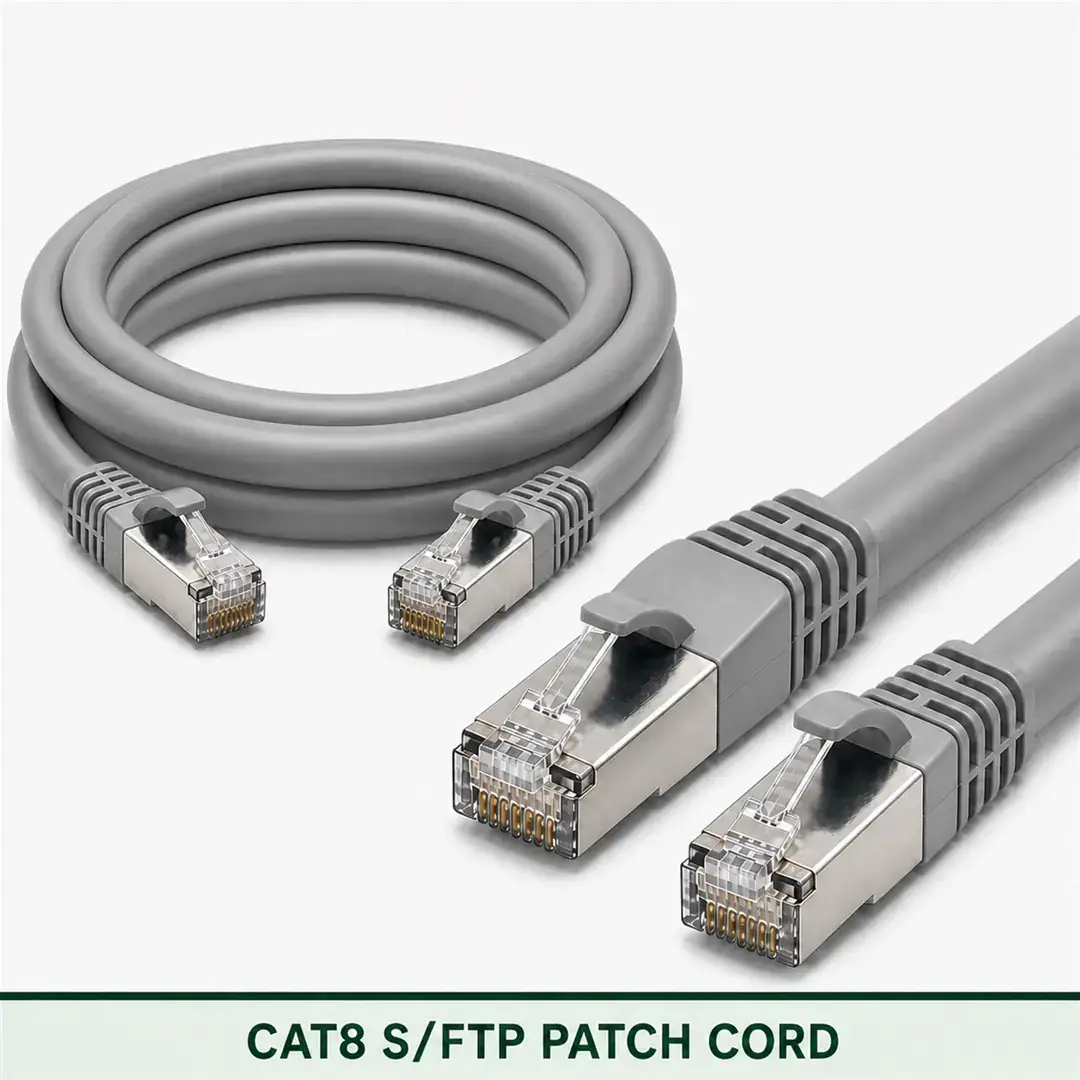

TMT Global Cat8 S/FTP 8X3SMSLXXX Series Data Patch Cords
The TMT GLOBAL Cat8 S/FTP Patch Cord (Class I / Cat8.1) is engineered for data centre and high-performance computing environments requiring 25/40 Gigabit Ethernet over short channel lengths. Manufactured by TMT Global Technology Ltd, its individually shielded pairs and overall braided shield deliver stable, very high-frequency performance for data centre installers and integrators specifying Cat8 links between switches, servers, and top-of-rack infrastructure.
Note: Cat8 channels (patch cords plus permanent link combined) are limited to 30m total per ANSI/TIA-568-C.2-1 and ISO/IEC 11801, unlike the 100m channels supported by Cat5e through Cat6A. Built with a halogen-free LSZH jacket and certified to CE, Euroclass Cca-s1b,d2,a2 (EN 13501-6 / BS EN 13501-6), and IEC/EN 60332-1-2 fire safety standards, it is suited to projects with strict fire and life-safety compliance requirements.
Features
- Snagless shielded RJ45 connectors, RJ45-compatible (Class I / Cat8.1)
- Individually foil-shielded pairs plus overall braided shield
- Premium copper conductors
- Multiple colours
- Multiple lengths (short-run, per 30m channel limit)
- Halogen-free LSZH jacket construction
- CE marked
- Euroclass Cca-s1b,d2,a2 fire rated (EN 13501-6 / BS EN 13501-6)
- IEC/EN 60332-1-2 flame retardant tested
- Factory tested
Application
- Data Centres
- High-Performance Computing
- Top-of-Rack Switch Links
- 25/40 Gigabit Ethernet Links
- Short-Channel Server Room Connections
Electrical & Mechanical Specifications
ANSI/TIA-568-C.2-1 & ISO/IEC 11801 Class I — RJ45-compatible
| Parameter | Specification |
| Type | CAT8 S/FTP (Class I / Cat8.1) |
| Frequency Range | 1–2000 MHz (2 GHz) |
| Characteristic Impedance | 100 ± 15Ω @ 1–2000MHz |
| Coupling Attenuation | ≥ 60dB @ 30–2000MHz |
| Conductor Resistance | ≤ 9.38Ω / 100m (24AWG) |
| Insulation Resistance | ≥ 10MΩ / 100m |
| Resistance Unbalance | 2% max |
| Dielectric Strength | 1000V / 1 min rms |
| Cable-to-Plug Tensile Strength | 9 Kgf (90N) min |
| Durability | 1200 mating cycles |
| Operating Temperature | -25°C to +70°C |
| Max Channel Length | 30m total (patch cords + permanent link) — NOT 100m |
Physical Properties, Length & Compliance
Physical & Mechanical Properties
| Parameter | Specification |
| Type | CAT8 S/FTP (Class I / Cat8.1) |
| Basic Conductor | 24AWG tmt copper |
| Insulation | FEP or foamed PE (low-loss, high-frequency grade) |
| Pairs | 4 individually foil-shielded pairs + overall braided shield |
| Impedance | 100Ω ± 15% |
| Outer Jacket | LSZH (halogen-free) |
| Plug Contact Plating | Phosphor bronze, 30µ” gold/nickel |
| RJ45 Plug | 8P8C, shielded, RJ45-compatible (Class I / Cat8.1 only — Class II uses GG45/ARJ45) |
| Cable OD | Confirm on sample (typ. 6.5–7.5mm) |
| Colour Options | Per available colour range |
| Length Range | 15cm – 90m (multiple lengths available) |
Compliance & Certification
| Parameter | Specification |
| Halogen-Free | Yes — LSZH (halogen-free) jacket construction |
| Fire Performance (Euroclass) | Cca-s1b, d2, a2 per EN 13501-6 / BS EN 13501-6 |
| CE Marking | Yes — DoP under EU/UK Construction Products Regulation |
| Flame Retardant Test | IEC/EN 60332-1-2 compliant |
| Test / Certificate Reference | Insert DoP / test report / notified body reference |
| AWG | 23 awg |
|---|---|
| Brand | TMT Global |
| Colour | Aqua, Black, Blue, Green, Grey, Orange, Red, Violet, White, Yellow |
| Jacket Type | LSZH |
| Length | 1 m, 1.5 m, 10 m, 12 m, 15 cm, 15 m, 2 m, 20 cm, 20 m, 25 cm, 25 m, 3 m, 30 cm, 30 m, 4 m, 5 m, 50 cm, 6 m, 8 m |
