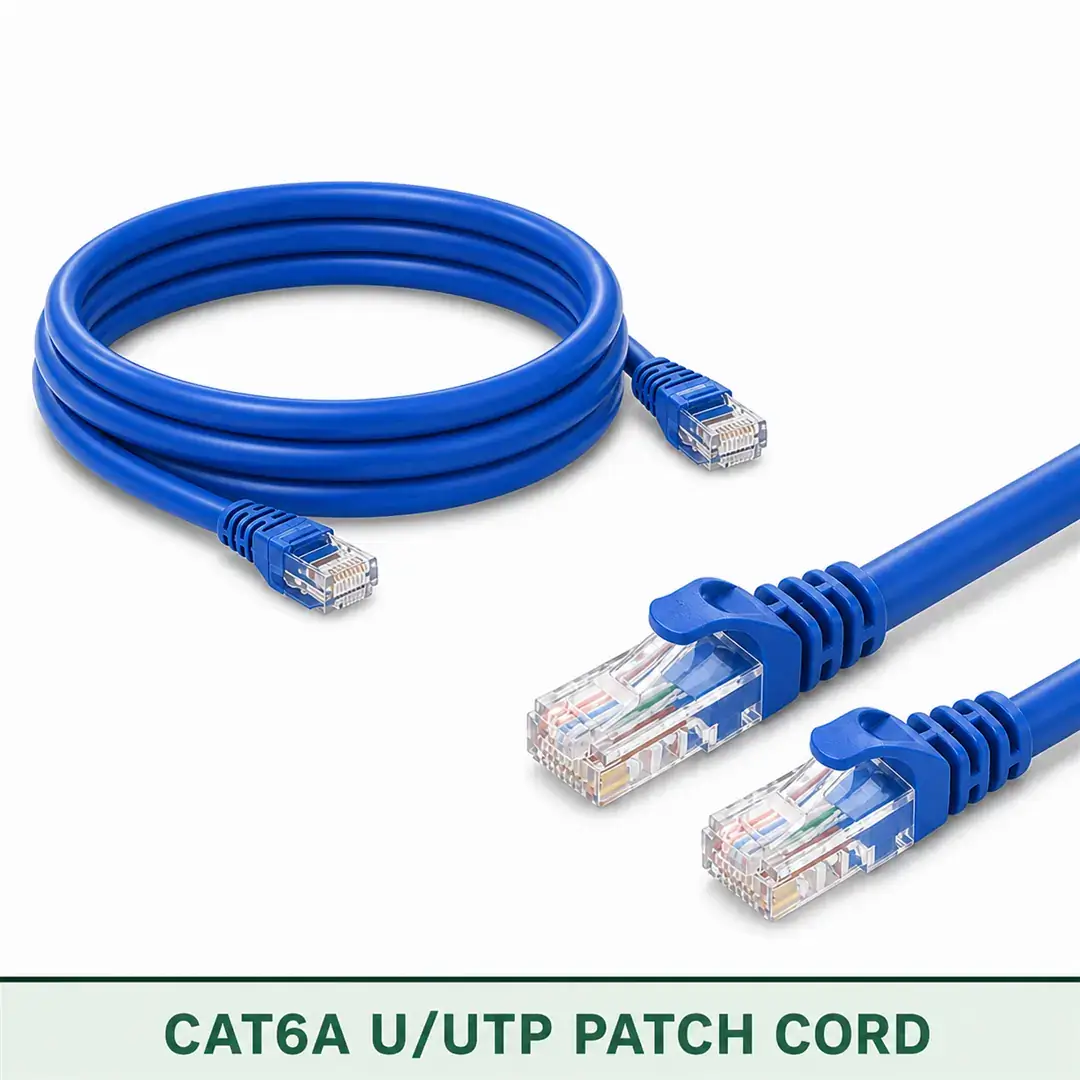

Cat6A U/UTP 6A3PMULXXX Series | 23 AWG Network Patch Cord
Features
- Structured Cabling
- Data Centres
- Enterprise LAN
- 10 Gigabit Ethernet Links
- High-Density Server Rooms
- Smart Buildings
TMT Global Cat6A U/UTP 6A3PMULXXX Series Data Patch Cords
The TMT GLOBAL Cat6A Data Ethernet Patch Cord is engineered for structured cabling environments requiring 10 Gigabit Ethernet performance over extended bandwidth. Manufactured by TMT Global Technology Ltd, this patch cord delivers stable high-frequency performance for installers, systems integrators, and structured cabling contractors specifying Cat6A links for data centre, enterprise LAN, and high-density infrastructure projects. Built with a halogen-free LSZH jacket and certified to CE, Euroclass Cca-s1b,d2,a2 (EN 13501-6 / BS EN 13501-6), and IEC/EN 60332-1-2 fire safety standards, it is suited to projects with strict fire and life-safety compliance requirements
Features
- Snagless RJ45 connectors
- Premium copper conductors
- Multiple colours
- Multiple lengths
- Halogen-free LSZH jacket construction
- CE marked
- Euroclass Cca-s1b,d2,a2 fire rated (EN 13501-6 / BS EN 13501-6)
- IEC/EN 60332-1-2 flame retardant tested
- Factory tested
- Supports 10GBASE-T applications
Application
- Structured Cabling
- Data Centres
- Enterprise LAN
- 10 Gigabit Ethernet Links
- High-Density Server Rooms
- Smart Buildings
Electrical & Mechanical Specifications
ISO/IEC 11801 Class E / TIA/EIA-568-C.2
| Parameter | Specification |
| Type | CAT6A U/UTP |
| Frequency Range | 1–500 MHz |
| Characteristic Impedance | 100 ± 15Ω @ 1–500MHz |
| Conductor Resistance | ≤ 9.38Ω / 100m (24AWG) |
| Insulation Resistance | ≥ 10MΩ / 100m |
| Resistance Unbalance | 2% max |
| Dielectric Strength | 1000V / 1 min rms |
| Cable-to-Plug Tensile Strength | 9 Kgf (90N) min |
| Durability | 1200 mating cycles |
| Operating Temperature | -25°C to +70°C |
Physical Properties, Length & Compliance
Physical & Mechanical Properties
| Parameter | Specification |
| Type | CAT6A U/UTP |
| Basic Conductor | 23AWG bare copper |
| Insulation | HDPE |
| Pairs | 4 twisted pairs |
| Pair Separator | Cross-web/spline for alien-crosstalk control |
| Impedance | 100Ω ± 15% |
| Outer Jacket | LSZH (halogen-free) |
| Plug Contact Plating | Phosphor bronze, 30µ” gold/nickel |
| RJ45 Plug | 8P8C, unshielded, 30U” U-type, 94V-2 |
| Cable OD | Confirm on sample (typ. 7.0–7.5mm) |
| Colour Options | Per available colour range |
| Length Range | 15cm – 90m (multiple lengths available) |
Compliance & Certification
| Parameter | Specification |
| Halogen-Free | Yes — LSZH (halogen-free) jacket construction |
| Fire Performance (Euroclass) | Cca-s1b, d2, a2 per EN 13501-6 / BS EN 13501-6 |
| CE Marking | Yes — DoP under EU/UK Construction Products Regulation |
| Flame Retardant Test | IEC/EN 60332-1-2 compliant |
| Test / Certificate Reference | Insert DoP / test report / notified body reference |
| AWG | 23 awg |
|---|---|
| Brand | TMT Global |
| Colour | Aqua, Black, Blue, Green, Grey, Orange, Red, Violet, White, Yellow |
| Jacket Type | LSZH, PVC |
| Length | 1 m, 1.5 m, 10 m, 12 m, 15 cm, 15 m, 2 m, 20 cm, 20 m, 25 cm, 25 m, 3 m, 30 cm, 30 m, 35 m, 4 m, 40 m, 45 m, 5 m, 50 cm, 50 m, 6 m, 60 m, 70 m, 8 m, 80 m, 90 m |
