CAT6A S/FTP LSZH Network Cable 24 AWG 4 Pair 305 m – 6A732BLX Series

Discover the benefits and features of the TMT Global Cat6a S/FTP LSZH network cable. Engineered for modern networking, this high-quality cable surpasses traditional Cat6 standards, offering enhanced data transfer rates and improved signal integrity. With its 23 AWG 4-pair construction and S/FTP shielded design, this cable minimizes electromagnetic interference, ensuring reliable performance in heavy electronic environments. Ideal for both residential and commercial applications, the 6A736MLX series boasts a 305-meter length, making it perfect for long-distance runs. Capable of supporting speeds up to 10 Gigabits per second at 500 MHz, this Cat6a cable is a future-proof solution for your connectivity needs. Upgrade your network performance with this valuable investment.

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-500 MHz
Loop Resistance: 25
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 534 + 36/vf. nS/100m max @ 1-500 MHz
Insulation Resistance: 45 nS/100m max @ 1-500 MHz
Coupling attenuation: 55 dB min @ 30-100 MHz 55-20Log(f/100) @100-500 MHz

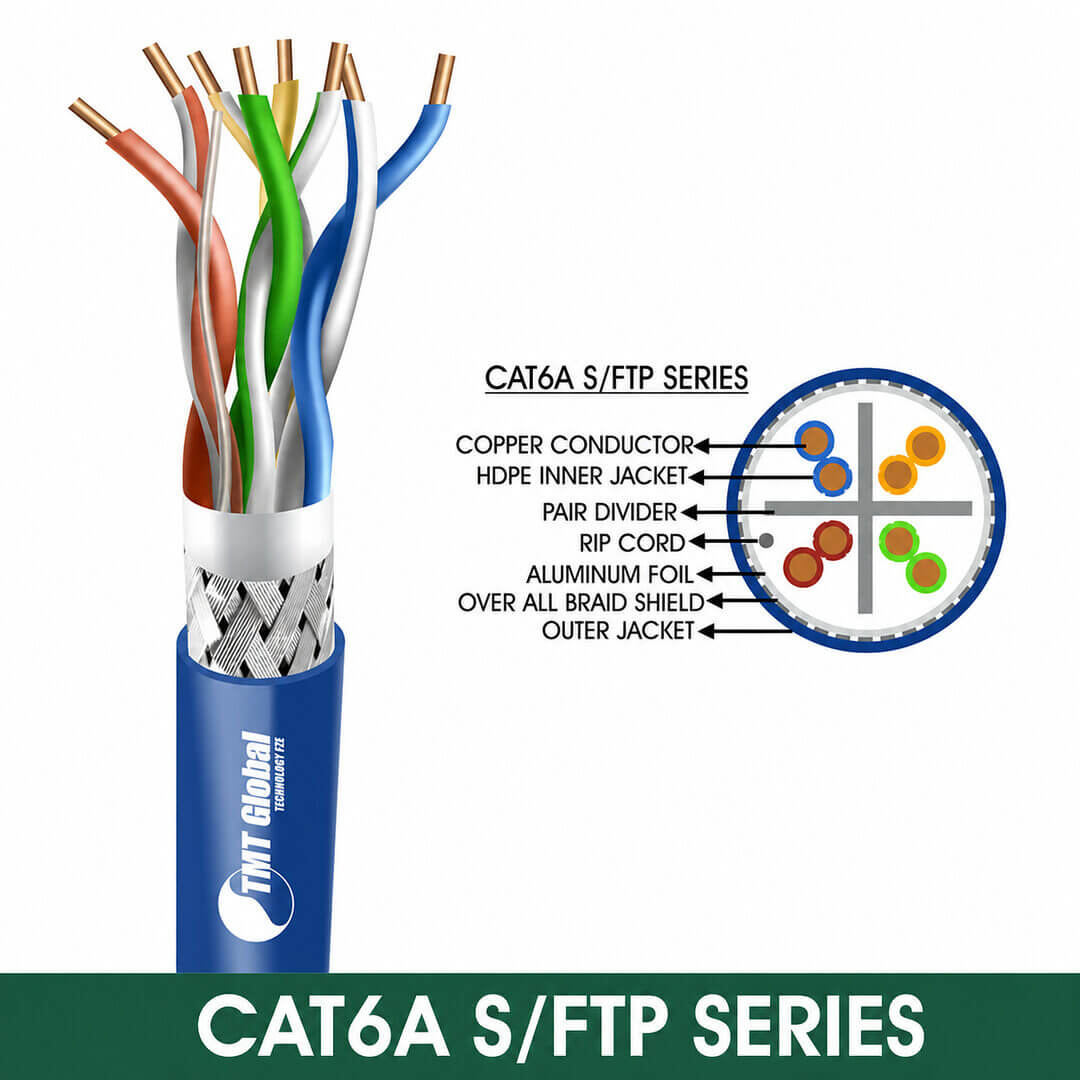

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: Bare copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: Overall Braid + Pairs aluminum Foil Polyester Tape
Drain wire: N
Outer Jacket: LSZH
Standard Jacket Color:Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow/AQUA
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: CAT6A S/FTP LSZH Network Cable 24 AWG 4 Pair 305 m – 6A732BLX Series
