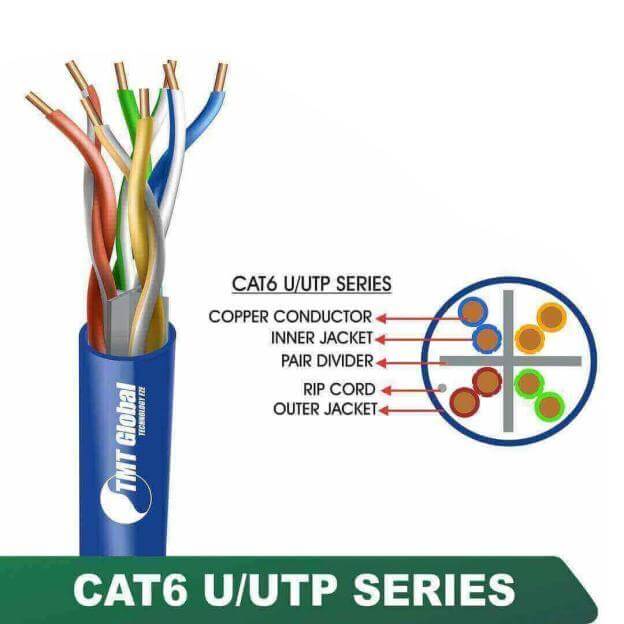

CAT6 U/UTP PVC Network Cable 23 AWG 4 Pair 305 m – 6X135BPX Series
General Specification:
• Conductor: Bare copper
• Conductor Size: 23AWG
• No. Of Pairs: 4 twisted pairs
• Overall Coverage: N/L
• Outer Jacket: PVC
• Jacket Color: Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow./Aqua
• Packing: 305m / Box
The TMT Global high quality Cat6 U/UTP PVC network cable is engineered for exceptional data transmission and reduced interference, making it an ideal choice for both residential and commercial networking setups. With a robust 23 AWG construction and four twisted pairs, it is designed to meet high-performance standards essential for modern applications such as streaming and online gaming. This versatile cable is capable of long runs up to 305 meters, ensuring that users can achieve seamless connectivity without compromising on signal quality. Whether for small office networks or extensive home installations, the TMT Global Cat6 cable offers a reliable and efficient solution that meets the growing demands of today’s technology-driven environment.
ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-250 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1600 pF/m max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 514 + 36/vf. nS/100m max @ 1-300 MHz
Insulation Resistance: 5000 Mega Ohm•Km min. @ 500 Vdc
Coupling attenuation: 40 dB min @ 30-100 MHz 40-20Log(f/100) @100-300 MHz
PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: Bare copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: N
Drain wire: N
Outer Jacket: PVC
Standard Jacket Color:Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow./Aqua
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: CAT6 U/UTP PVC Network Cable 23 AWG 4 Pair 305 m – 6X135BPX Series
| AWG | 23 awg |
|---|---|
| Colour | Aqua, Black, Blue, Green, Grey, Orange, Red, Violet, White, Yellow |
| Brand | TMT Global |
| Jacket Type | PVC |
| Length | 305 m |
| Colour | Item Code / SKU | Jacket | AWG | Pack |
|---|---|---|---|---|
| Aqua | PVC | 23 awg | 305M | |
| Black | PVC | 23 awg | 305M | |
| Blue | PVC | 23 awg | 305M | |
| Green | PVC | 23 awg | 305M | |
| Grey | PVC | 23 awg | 305M | |
| Orange | PVC | 23 awg | 305M | |
| Red | PVC | 23 awg | 305M | |
| Violet | PVC | 23 awg | 305M | |
| White | PVC | 23 awg | 305M | |
| Yellow | PVC | 23 awg | 305M |
