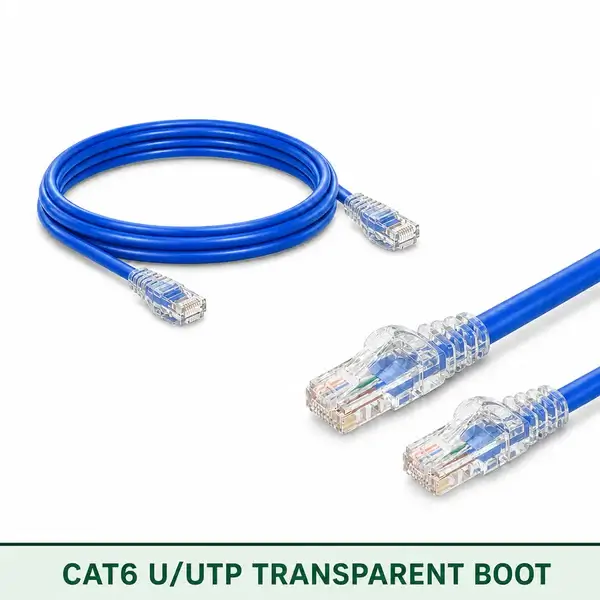

Cat6 U/UTP 6X3RMULXXX Series | 23 AWG Transparent Network Patch Cord
Features
- Snagless RJ45 connectors
- Premium tmt copper conductors
- Multiple colours
- Multiple lengths
- Flexible PVC / LSZH jacket options
- Factory tested
- Backward compatible where applicable
- Backward compatible with Cat5e/Cat5 infrastructure
TMT Global Cat6 U/UTP 6X3RMULXXX Series
Transparent Data Patch Cords
The TMT GLOBAL Cat6 transparent Data Ethernet Patch Cord is engineered for structured cabling and enterprise networking environments requiring higher bandwidth than Cat5e. Manufactured by TMT Global Technology Ltd, this patch cord delivers stable, higher-frequency performance for installers, systems integrators, and structured cabling contractors specifying Cat6 links for LAN, data centre, and building infrastructure projects. Built with a halogen-free LSZH jacket and certified to CE, Euroclass Cca-s1b,d2,a2 (EN 13501-6 / BS EN 13501-6), and IEC/EN 60332-1-2 fire safety standards, it is suited to projects with strict fire and life-safety compliance requirements.
Features
- Snagless RJ45 connectors
- Premium copper conductors
- Multiple colours
- Multiple lengths
- Halogen-free LSZH jacket construction
- CE marked
- Euroclass Cca-s1b,d2,a2 fire rated (EN 13501-6 / BS EN 13501-6)
- IEC/EN 60332-1-2 flame retardant tested
- Factory tested
- Backward compatible with Cat5e/Cat5 infrastructure
Application
- Structured Cabling
- Data Centres
- Enterprise LAN
- VoIP
- Wireless Access Points
- Smart Buildings
- Industrial Networks
Electrical & Mechanical Specifications
ISO/IEC 11801 Class E / TIA/EIA-568-C.2
| Parameter | Specification |
| Type | CAT6 U/UTP |
| Frequency Range | 1–250 MHz |
| Characteristic Impedance | 100 ± 15Ω @ 1–250MHz |
| Conductor Resistance | ≤ 9.38Ω / 100m (23AWG) |
| Insulation Resistance | ≥ 10MΩ / 100m |
| Resistance Unbalance | 2% max |
| Dielectric Strength | 1000V / 1 min rms |
| Cable-to-Plug Tensile Strength | 9 Kgf (90N) min |
| Durability | 1200 mating cycles |
| Operating Temperature | -25°C to +70°C |
Physical Properties, Length & Compliance
Physical & Mechanical Properties
| Parameter | Specification |
| Type | CAT6 U/UTP |
| Basic Conductor | 23AWG tmt copper |
| Insulation | HDPE |
| Pairs | 4 twisted pairs |
| Pair Separator | Cross-web/spline (if present in construction) |
| Impedance | 100Ω ± 15% |
| Outer Jacket | LSZH (halogen-free) |
| Plug Contact Plating | Phosphor bronze, 30µ” gold/nickel |
| RJ45 Plug | 8P8C, unshielded, 30U” U-type, 94V-2 |
| Cable OD | Confirm on sample (typ. 5.5–6.0mm) |
| Colour Options | Per available colour range |
| Length Range | 15cm – 90m (multiple lengths available) |
Compliance & Certification
| Parameter | Specification |
| Halogen-Free | Yes — LSZH (halogen-free) jacket construction |
| Fire Performance (Euroclass) | Cca-s1b, d2, a2 per EN 13501-6 / BS EN 13501-6 |
| CE Marking | Yes — DoP under EU/UK Construction Products Regulation |
| Flame Retardant Test | IEC/EN 60332-1-2 compliant |
| Test / Certificate Reference | Insert DoP / test report / notified body reference |
| AWG | 23 awg |
|---|---|
| Brand | TMT Global |
| Colour | Aqua, Black, Blue, Green, Grey, Orange, Red, Violet, White, Yellow |
| Jacket Type | LSZH |
| Length | 1 m, 1.5 m, 10 m, 12 m, 15 cm, 15 m, 2 m, 20 cm, 20 m, 25 cm, 25 m, 3 m, 30 cm, 30 m, 35 m, 4 m, 40 m, 45 m, 5 m, 50 cm, 50 m, 6 m, 60 m, 70 m, 8 m, 80 m, 90 m |
