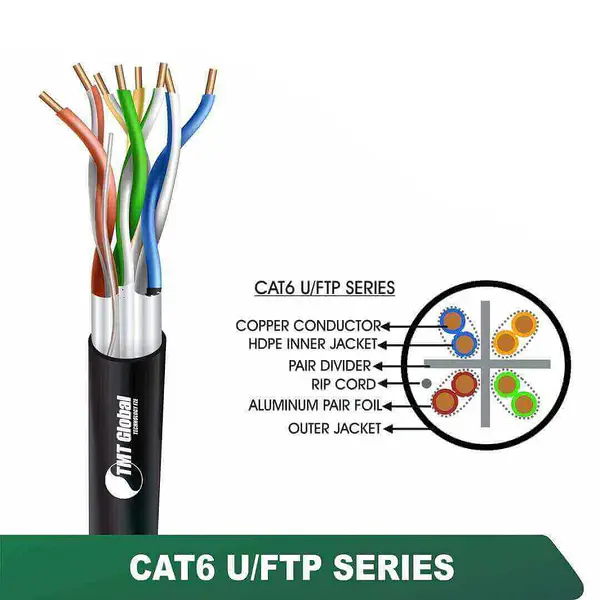

CAT6 U/FTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6X336MOK

Discover the TMT Global Cat6 U/FTP PE outdoor network cable, designed for modern networking needs. This high-quality cable features a robust 23 AWG construction with four twisted pairs, ensuring exceptional performance in various applications such as home offices and commercial settings. With its effective U/FTP shielding, it significantly reduces electromagnetic interference, making it ideal for environments with multiple signals. The durable polyethylene outer jacket provides reliable protection against harsh weather conditions, ensuring longevity and performance. Available in a 305-meter length, this cable minimizes the need for extra connectors or repeaters, making installation easier. Trust TMT Global Technology Ltd to deliver superior data transmission speeds and a steadfast connection for optimal networking reliability.

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-250 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1600 pF/m max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 514 + 36/vf. nS/100m max @ 1-300 MHz
Insulation Resistance: 5000 Mega Ohm•Km min. @ 500 Vdc
Coupling attenuation: 40 dB min @ 30-100 MHz 40-20Log(f/100) @100-300 MHz

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: tmt copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage:  Polyester-aluminum tape
Drain wire: copper conductor laid in close contact under the shield.
Outer Jacket: PE Outdoor
Standard Jacket Color: Black
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: CAT6 U/FTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6X336MOK
