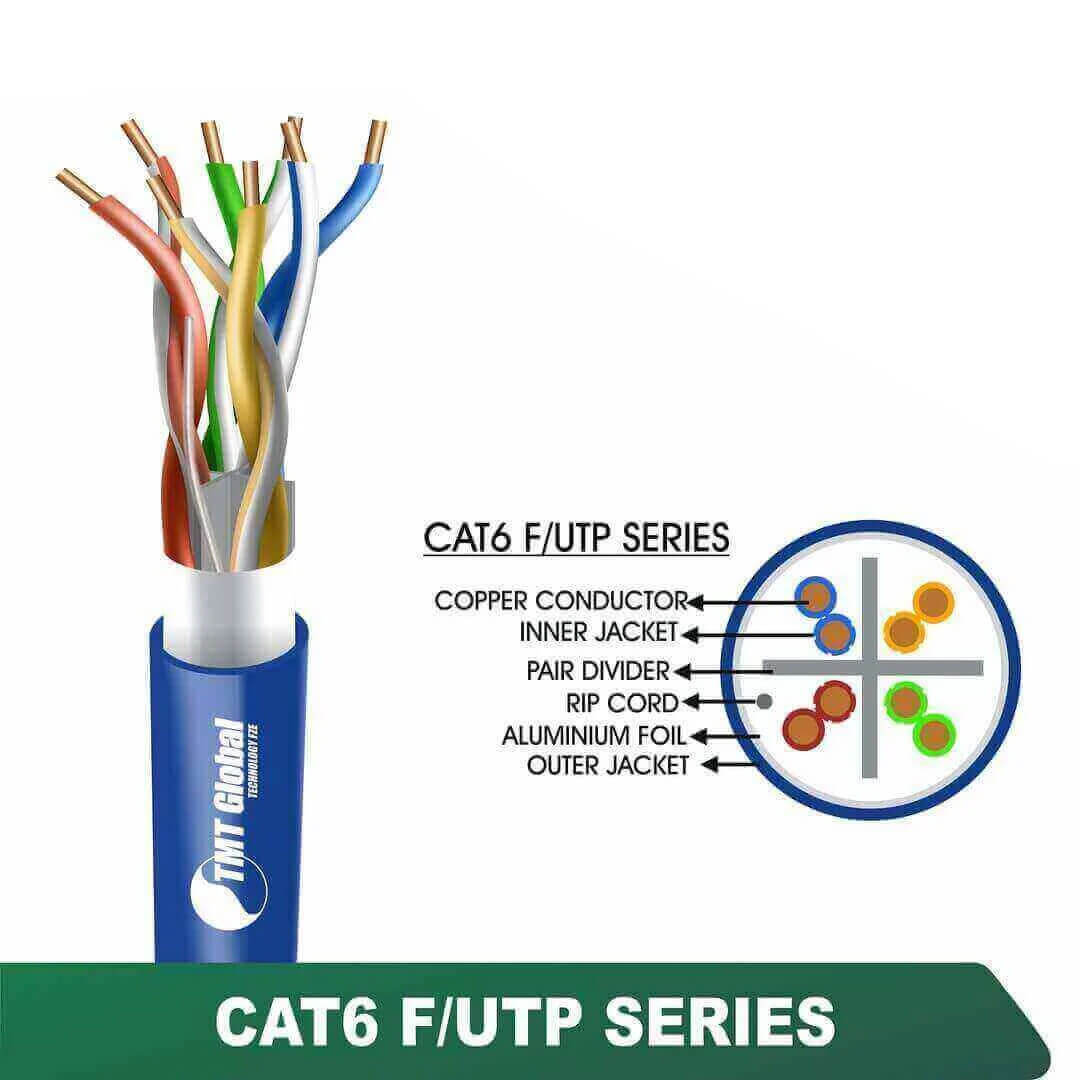

CAT6 F/UTP PVC Network Cable 23 AWG 4 Pair 305 m – 6X238BPX Series
General Specification:
Conductor: Bare copper
Conductor Size: 23AWG
No. Of Pairs: 4 twisted pairs
Overall Coverage: Polyester-aluminum tape
Outer Jacket: PVC
Jacket Color: Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow./Aqua
Packing: 305m
The TMT Global Cat6 F/UTP PVC Network Cable is engineered for high-speed data transmission essential for home and business use. With its 23 AWG construction and four twisted pairs, the cable minimizes interference and ensures robust performance. The durable PVC jacket and lengthy 305 meters make it versatile for large installations. Supporting data rates of up to 10 Gbps and frequencies of 250 MHz, this cable is capable of handling various applications including HD video streaming and online gaming. Investing in the TMT Global Cat6 cable guarantees optimum network performance, making it an ideal choice for upgrading your networking setup.
ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-250 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1600 pF/m max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 514 + 36/vf. nS/100m max @ 1-300 MHz
Insulation Resistance: 5000 Mega Ohm•Km min. @ 500 Vdc
Coupling attenuation: 40 dB min @ 30-100 MHz 40-20Log(f/100) @100-300 MHz
PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: Bare copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: Polyester-aluminum tape
Drain wire: N
Outer Jacket: PVC
Standard Jacket Color:Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow./Aqua
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: CAT6 F/UTP PVC Network Cable 23 AWG 4 Pair 305 m – 6X238BPX Series
| AWG | 23 awg |
|---|---|
| Brand | TMT Global |
| Colour | Aqua, Black, Blue, Green, Grey, Orange, Red, Violet, White, Yellow |
| Jacket Type | PVC |
| Length | 305 m |
| Colour | Item Code / SKU | Jacket | AWG | Pack |
|---|---|---|---|---|
| Aqua | PVC | 23 awg | 305M | |
| Black | PVC | 23 awg | 305M | |
| Blue | PVC | 23 awg | 305M | |
| Green | PVC | 23 awg | 305M | |
| Grey | PVC | 23 awg | 305M | |
| Orange | PVC | 23 awg | 305M | |
| Red | PVC | 23 awg | 305M | |
| Violet | PVC | 23 awg | 305M | |
| White | PVC | 23 awg | 305M | |
| Yellow | PVC | 23 awg | 305M |
