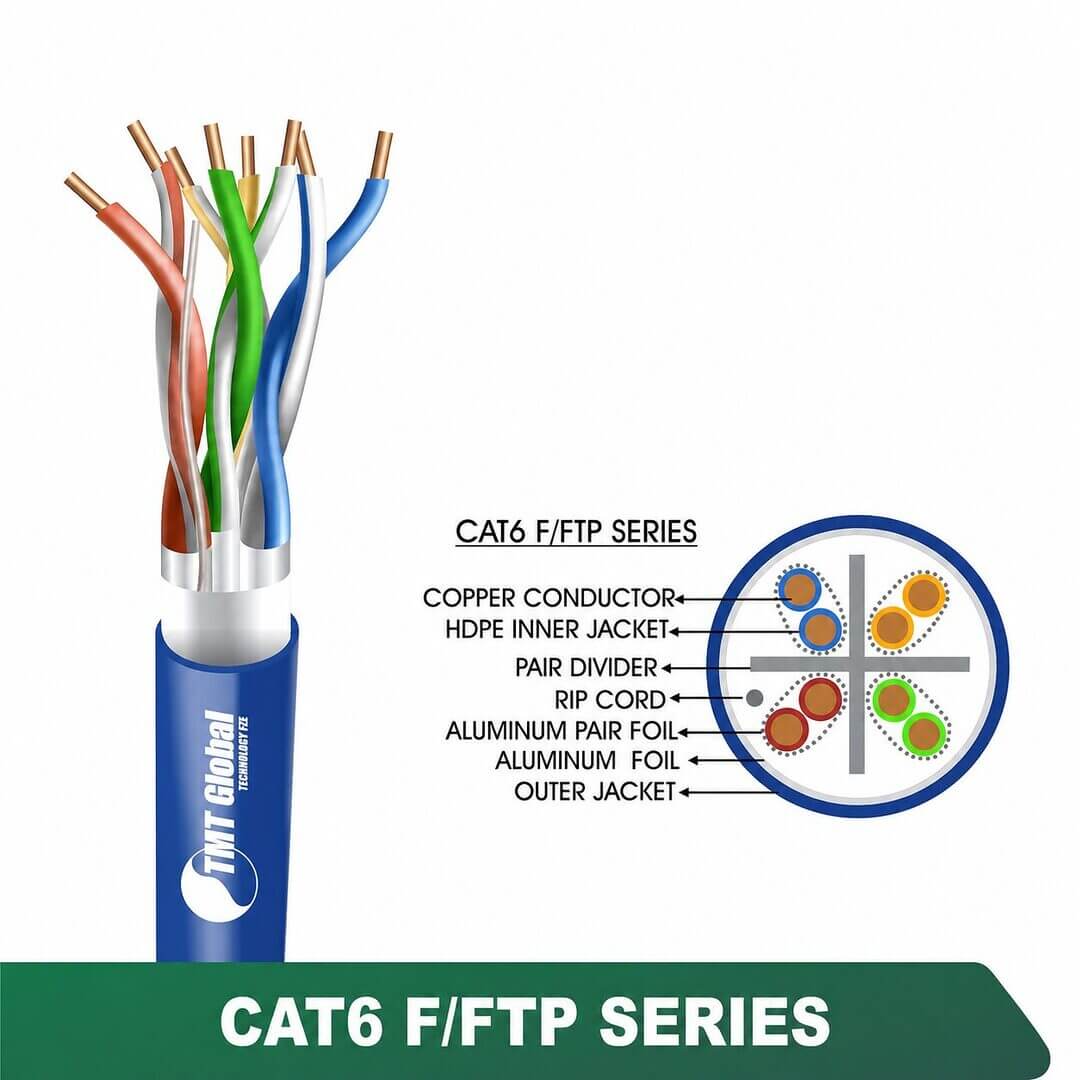

CAT6 F/FTP PVC Network Cable 23 AWG 4 Pair 305 m – 6X436MPX Series
General Specification:
• Conductor: tmt Copper
• Conductor Size: 23AWG
• No. Of Pairs: 4 twisted pairs
• Overall Coverage: Overall + Pairs Polyester-aluminum tape
• Outer Jacket: PVC
• Jacket Color: Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow./Aqua
• Packing: 305m / Box
Discover the TMT Global CAT6 F/FTP PVC Network Cable, a high-performance solution for your networking needs. With a robust 23 AWG conductor and a generous length of 305 meters, this cable is perfect for extensive installations in both commercial and residential environments. Featuring a unique unshielded twisted pair (F/FTP) design, it reduces interference and maintains signal integrity over long distances. The PVC insulation enhances durability, making it suitable for varied conditions. Capable of supporting frequencies up to 250 MHz, this cable is ideal for gigabit Ethernet and other high-speed data transmissions, ensuring a reliable connection for tasks such as video streaming and large data transfers. Experience superior performance and reliability with the TMT Global CAT6 network cable, designed for those who demand the best in data transmission.
ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-250 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1600 pF/m max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 514 + 36/vf. nS/100m max @ 1-300 MHz
Insulation Resistance: 5000 Mega Ohm•Km min. @ 500 Vdc
Coupling attenuation: 40 dB min @ 30-100 MHz 40-20Log(f/100) @100-300 MHz
PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: tmt copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: Overall + Pairs Polyester-aluminum tape
Drain wire: copper conductor laid in close contact under the shield.
Outer Jacket: PVC
Standard Jacket Color:Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow./Aqua
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: CAT6 F/FTP PVC Network Cable 23 AWG 4 Pair 305 m – 6X436MPX Series
| AWG | 23 awg |
|---|---|
| Brand | TMT Global |
| Colour | Aqua, Black, Blue, Green, Grey, Orange, Red, Violet, White, Yellow |
| Jacket Type | PVC |
| Length | 305 m |
| Colour | Item Code / SKU | Jacket | AWG | Pack |
|---|---|---|---|---|
| Aqua | PVC | 23 awg | 305M | |
| Black | PVC | 23 awg | 305M | |
| Blue | PVC | 23 awg | 305M | |
| Green | PVC | 23 awg | 305M | |
| Grey | PVC | 23 awg | 305M | |
| Orange | PVC | 23 awg | 305M | |
| Red | PVC | 23 awg | 305M | |
| Violet | PVC | 23 awg | 305M | |
| White | PVC | 23 awg | 305M | |
| Yellow | PVC | 23 awg | 305M |
