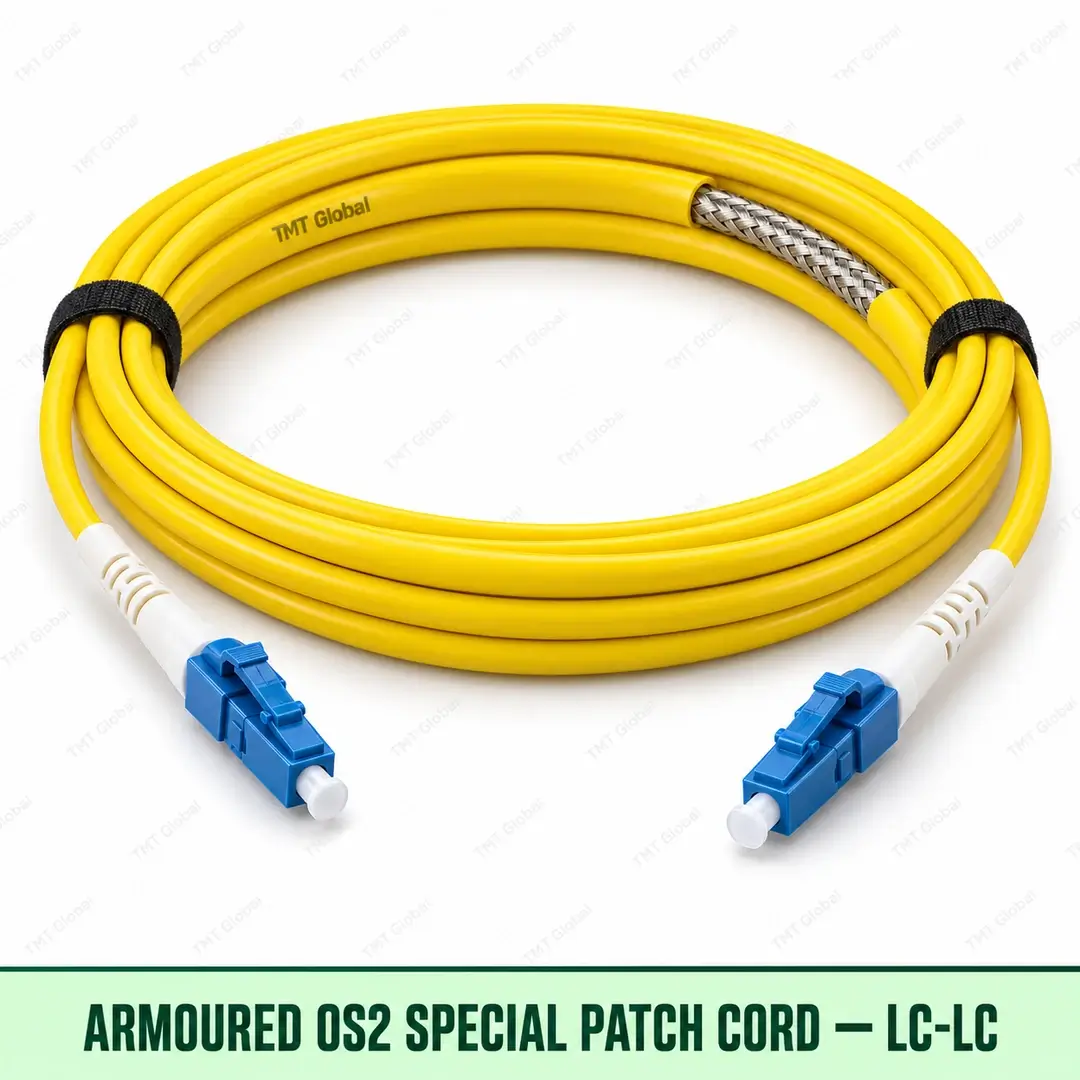

Armoured / Special Patch Cord — OS2 / G.657.A2 LC-LC

TMT Global Armoured / Special Patch Cord — OS2 / G.657.A2 LC-LC Series

The TMT Global Armoured / Special Patch Cord — OS2 / G.657.A2 LC-LC is a controlled fibre connectivity assembly configured with OS2 / G.657.A2, LC-LC connectivity, UPC polish and Armoured LSZH 3.0 mm. It is intended for structured fibre interconnection in telecom rooms, data centres, ODFs, patch panels, access networks and equipment cabinets.

KEY FEATURES

• Fibre grade: OS2 / G.657.A2 / OM3
• Connector configuration: LC-LC / SC-SC / SC-LC
• Polish: UPC
• Construction: Armoured LSZH 3.0 mm
• LSZH jacket / buffer construction as applicable
• Individual product identification and optical test evidence

APPLICATIONS

• ODF and fibre patch panels
• Data-centre cross-connects
• Enterprise LAN and backbone links
• FTTH / access networks where applicable
• Equipment and cabinet interconnection

OEM / PUBLICATION POSITIONING

Publish this SKU only with the exact configuration shown above. Length and colour may be handled as selectable variations where required; do not create duplicate base SKUs for those cosmetic / ordering variations.

STANDARDS / TEST BASIS

• IEC 60793 fibre category framework
• IEC 60794 optical cable construction framework
• IEC 61754 connector interface family
• IEC 61300 optical connector test methods
• ISO/IEC 11801 / EN 50173 system application
• RoHS and REACH conformity — only where supported by conformity documentation

QUALITY / ACCEPTANCE

• OEM supply must match this SKU configuration and provide applicable optical and material test evidence. Do not substitute connector, polish, fibre grade or construction without controlled revision.

TECHNICAL SPECIFICATION
