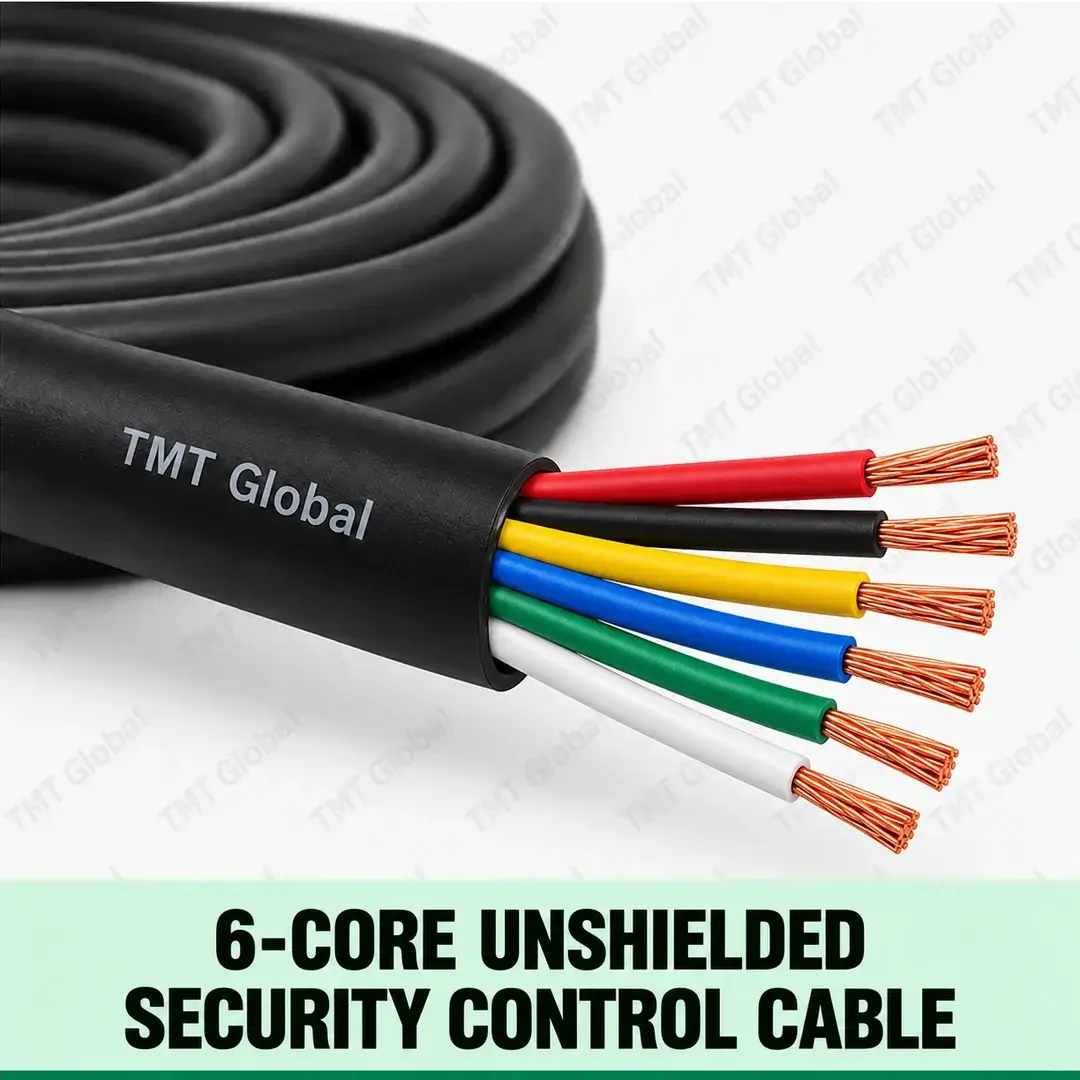

6 Core Unshielded Security Control Cable
KEY FEATURES
- 6-core round security-control construction
- No overall screen
- 18 / 20 / 22 AWG Series range
- PVC / LSZH / PE Outdoor variants
- 305 m standard package
Description
TMT 6 Core Unshielded Security Control Cable Series
TMT Global 6 Core Unshielded Security Control Cable is a controlled low-voltage Security & ELV cable family for Multi-signal security control and panel-to-device interconnection. The product page fixes the 6-core unshielded round construction, while 18 / 20 / 22 AWG and PVC / LSZH / PE Outdoor variants remain exact searchable TMT Series rows.
KEY FEATURES
- 6-core round security-control construction
- No overall screen
- 18 / 20 / 22 AWG Series range
- PVC / LSZH / PE Outdoor variants
- 305 m standard package
APPLICATIONS
- Security controller I/O
- Multi-device auxiliary circuits
- Keypad / indicator interfaces
- General ELV control circuits
- Panel-to-peripheral wiring
Technical Specification
| TECHNICAL SPECIFICATION | VALUE |
| Product family | 6 Core Unshielded Security Control Cable |
| Series | 06U-ST |
| Primary application | General security-system / power-limited control wiring; non-protocol auxiliary and supervisory circuits |
| Core configuration | 6 conductors |
| Conductor material | Bare copper |
| Available conductor sizes | 18 AWG / 20 AWG / 22 AWG |
| Screening | No overall screen |
| Cable form | Round |
| Outer-jacket options | PVC / LSZH / PE Outdoor |
| Standard colours | Grey indoor; Black outdoor |
| Standard package | 305 m |
| Cable type | Security control cable |
| Series variants | 18 / 20 / 22 AWG with PVC / LSZH / PE Outdoor options |
AWG / NOMINAL AREA / SERIES AVAILABILITY
| AWG | NOMINAL AREA (mm²) | SERIES AVAILABILITY |
| 18 | 0.823 | PVC / LSZH / PE Outdoor |
| 20 | 0.518 | PVC / LSZH / PE Outdoor |
| 22 | 0.326 | PVC / LSZH / PE Outdoor |
Additional information
| AWG | 18 awg, 20 awg, 22 awg |
|---|---|
| Brand | TMT Global |
| Colour | Black, Grey |
| Jacket Type | LSZH, PE Outdoor, PVC |
| Length | 305 m |
Ordering Information
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| 6 Core Unshielded Security Control Cable | 06U-ST | 18 awg | PVC | Grey | 305 m |  | |
| 6 Core Unshielded Security Control Cable | 06U-ST | 18 awg | LSZH | Grey | 305 m | | |
| 6 Core Unshielded Security Control Cable | 06U-ST | 18 awg | PE Outdoor | Black | 305 m | | |
| 6 Core Unshielded Security Control Cable | 06U-ST | 20 awg | PVC | Grey | 305 m | | |
| 6 Core Unshielded Security Control Cable | 06U-ST | 20 awg | LSZH | Grey | 305 m | | |
| 6 Core Unshielded Security Control Cable | 06U-ST | 20 awg | PE Outdoor | Black | 305 m | | |
| 6 Core Unshielded Security Control Cable | 06U-ST | 22 awg | PVC | Grey | 305 m | | |
| 6 Core Unshielded Security Control Cable | 06U-ST | 22 awg | LSZH | Grey | 305 m | | |
| 6 Core Unshielded Security Control Cable | 06U-ST | 22 awg | PE Outdoor | Black | 305 m | |
