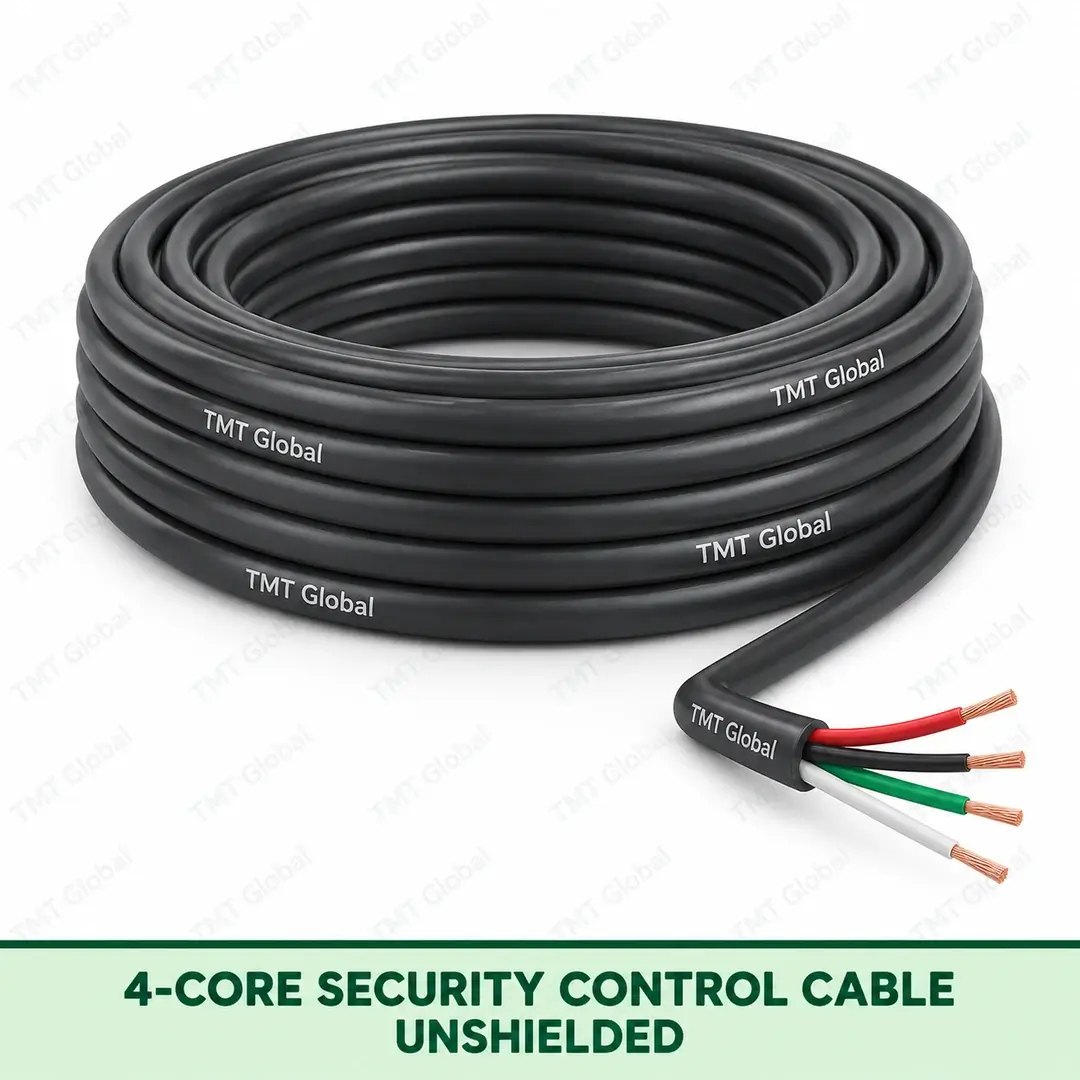

4 Core Unshielded Security Control Cable
KEY FEATURES
- 4-core round security-control construction
- No overall screen
- 18 / 20 / 22 AWG Series range
- PVC / LSZH / PE Outdoor variants
- 305 m standard package
Description
TMT 4 Core Unshielded Security Control Cable Series
TMT Global 4 Core Unshielded Security Control Cable is a controlled low-voltage Security & ELV cable family for Security panel, relay, auxiliary and peripheral control wiring. The product page fixes the 4-core unshielded round construction, while 18 / 20 / 22 AWG and PVC / LSZH / PE Outdoor variants remain exact searchable TMT Series rows.
KEY FEATURES
- 4-core round security-control construction
- No overall screen
- 18 / 20 / 22 AWG Series range
- PVC / LSZH / PE Outdoor variants
- 305 m standard package
APPLICATIONS
- Security panels and auxiliary controllers
- Relays, contacts and annunciation
- Keypad / peripheral control
- Multi-point dry-contact wiring
- Power-limited control interfaces
Technical Specification
| TECHNICAL SPECIFICATION | VALUE |
| Product family | 4 Core Unshielded Security Control Cable |
| Series | 04U-ST |
| Primary application | General security-system / power-limited control wiring; non-protocol auxiliary and supervisory circuits |
| Core configuration | 4 conductors |
| Conductor material | Bare copper |
| Available conductor sizes | 18 AWG / 20 AWG / 22 AWG |
| Screening | No overall screen |
| Cable form | Round |
| Outer-jacket options | PVC / LSZH / PE Outdoor |
| Standard colours | Grey indoor; Black outdoor |
| Standard package | 305 m |
| Cable type | Security control cable |
| Series variants | 18 / 20 / 22 AWG with PVC / LSZH / PE Outdoor options |
AWG / NOMINAL AREA / SERIES AVAILABILITY
| AWG | NOMINAL AREA (mm²) | SERIES AVAILABILITY |
| 18 | 0.823 | PVC / LSZH / PE Outdoor |
| 20 | 0.518 | PVC / LSZH / PE Outdoor |
| 22 | 0.326 | PVC / LSZH / PE Outdoor |
Additional information
| AWG | 18 awg, 20 awg, 22 awg |
|---|---|
| Brand | TMT Global |
| Colour | Black, Grey |
| Jacket Type | LSZH, PE Outdoor, PVC |
| Length | 305 m |
Ordering Information
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| 4 Core Unshielded Security Control Cable | 04U-ST | 18 awg | PVC | Grey | 305 m |  | |
| 4 Core Unshielded Security Control Cable | 04U-ST | 18 awg | LSZH | Grey | 305 m | | |
| 4 Core Unshielded Security Control Cable | 04U-ST | 18 awg | PE Outdoor | Black | 305 m | | |
| 4 Core Unshielded Security Control Cable | 04U-ST | 20 awg | PVC | Grey | 305 m | | |
| 4 Core Unshielded Security Control Cable | 04U-ST | 20 awg | LSZH | Grey | 305 m | | |
| 4 Core Unshielded Security Control Cable | 04U-ST | 20 awg | PE Outdoor | Black | 305 m | | |
| 4 Core Unshielded Security Control Cable | 04U-ST | 22 awg | PVC | Grey | 305 m | | |
| 4 Core Unshielded Security Control Cable | 04U-ST | 22 awg | LSZH | Grey | 305 m | | |
| 4 Core Unshielded Security Control Cable | 04U-ST | 22 awg | PE Outdoor | Black | 305 m | |
