20-Core Foil Shielded Multi-Conductor Cable
KEY FEATURES
- 20 individually insulated, colour/number-identified conductors
- Overall aluminium/polyester foil screen with tinned-copper drain wire
- 14, 16, 18, 20, 22 and 24 AWG Series options
- PVC, LSZH and outdoor PE jacket choices
- Bare-copper conductor; solid or stranded by released drawing
- Exact searchable ordering code for every standard combination
Description

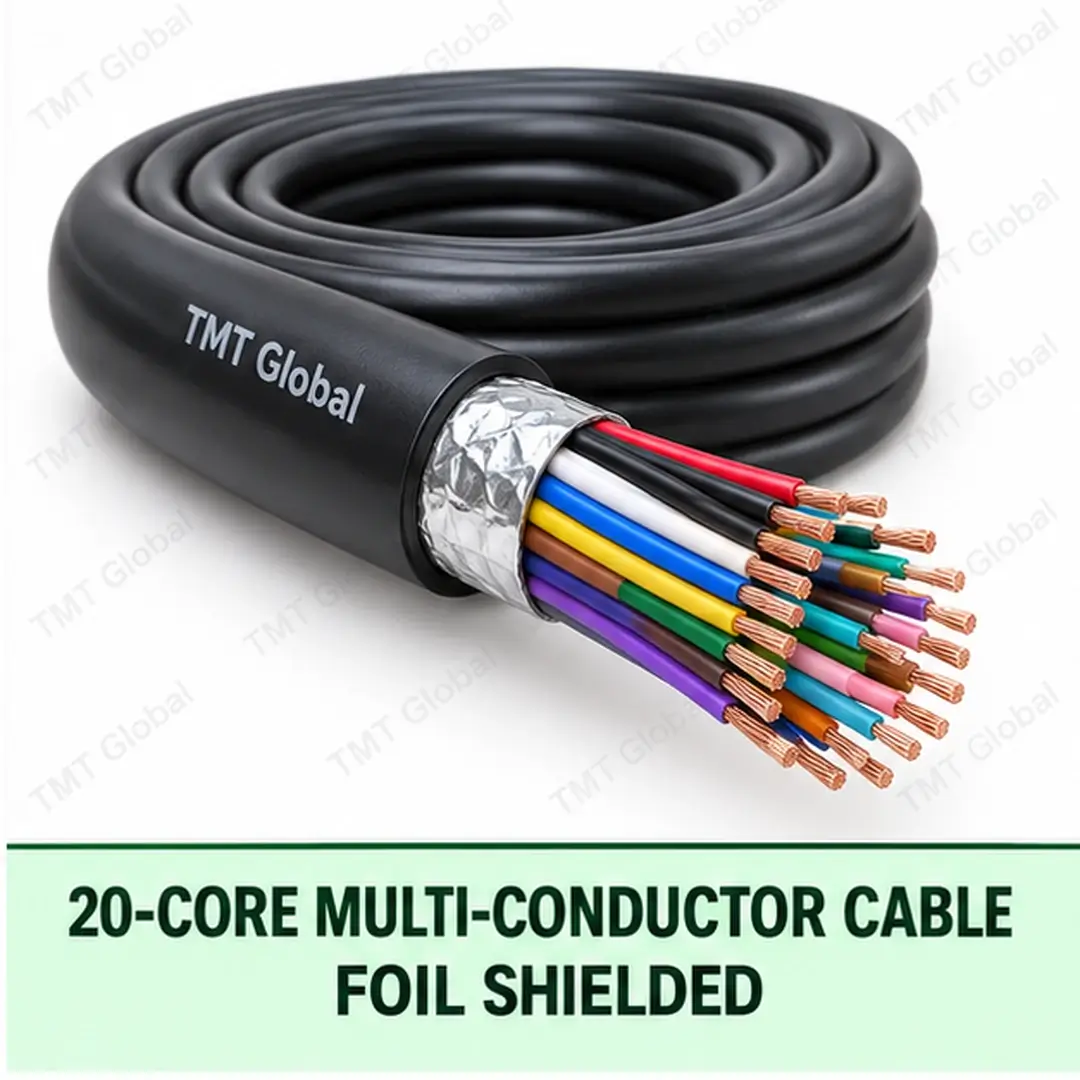

TMT Global 20-Core Foil Shielded Multi-Conductor Cable Series
TMT Global 20-Core Foil Shielded Multi-Conductor Cable is a configurable high-count cable family for organised control, signal and automation wiring between panels, terminal cabinets, machines and field equipment. The product page fixes the 20-core foil shielded construction, while the TMT Series ordering table provides exact AWG and jacket-specific item codes for customer search, quotation and project selection.
KEY FEATURES
- 20 individually insulated, colour/number-identified conductors
- Overall aluminium/polyester foil screen with tinned-copper drain wire
- 14, 16, 18, 20, 22 and 24 AWG Series options
- PVC, LSZH and outdoor PE jacket choices
- Bare-copper conductor; solid or stranded by released drawing
- Exact searchable ordering code for every standard combination
TYPICAL APPLICATIONS
- Industrial control panels and terminal cabinets
- PLC I/O, relay, actuator and machine-interface wiring
- Building automation and multi-signal distribution
- Sensors, solenoids, valves and interconnection bundles
- OEM machinery, utilities and infrastructure projects
Technical Specification
| PARAMETER | SPECIFICATION |
| Product type | High-count multi-conductor control, automation and signal cable |
| Core configuration | 20 individually insulated conductors |
| Conductor material | Bare copper |
| Conductor construction | Bare-copper conductors; solid or stranded construction options |
| Available conductor sizes | 14 / 16 / 18 / 20 / 22 / 24 AWG |
| Core identification | Number-coded or colour-coded conductors |
| Core insulation | PVC / PE / halogen-free compound options by Series construction |
| Screening | Overall aluminium/polyester foil screen with tinned-copper drain wire |
| Outer-jacket options | PVC / LSZH / PE Outdoor |
| Cable form | Round |
| Standard colours | Grey for PVC/LSZH; Black for PE Outdoor |
| Package length | 305 m standard TMT package |
| Series structure | 18 searchable Series SKUs per family (6 AWG × 3 jackets) |
| Ordering basis | AWG and jacket define the exact Series SKU |
SERIES AVAILABILITY MATRIX
| AWG | NOMINAL AREA | SERIES AVAILABILITY |
| 14 AWG | 2.08 mm² | PVC / LSZH / PE Outdoor • Project option |
| 16 AWG | 1.31 mm² | PVC / LSZH / PE Outdoor • Standard / project |
| 18 AWG | 0.823 mm² | PVC / LSZH / PE Outdoor • Main market |
| 20 AWG | 0.519 mm² | PVC / LSZH / PE Outdoor • Main market |
| 22 AWG | 0.326 mm² | PVC / LSZH / PE Outdoor • Main market |
| 24 AWG | 0.205 mm² | PVC / LSZH / PE Outdoor • Signal / project standard |
Additional information
| AWG | 14 awg, 16 awg, 18 awg, 20 awg, 22 awg, 24 awg |
|---|---|
| Colour | Black, Grey |
| Jacket Type | LSZH, PE Outdoor, PVC |
| Brand | TMT Global |
| Length | 305 m |
