1×4 PLC Splitter Distribution Box
KEY FEATURES
- 4-fibre termination capacity
- Flame-retardant ABS/PC enclosure construction
- SC/APC preferred interface configuration
- Bend-radius controlled fibre routing
- Splice sleeve and fibre management
- Cable entry and strain-relief provision

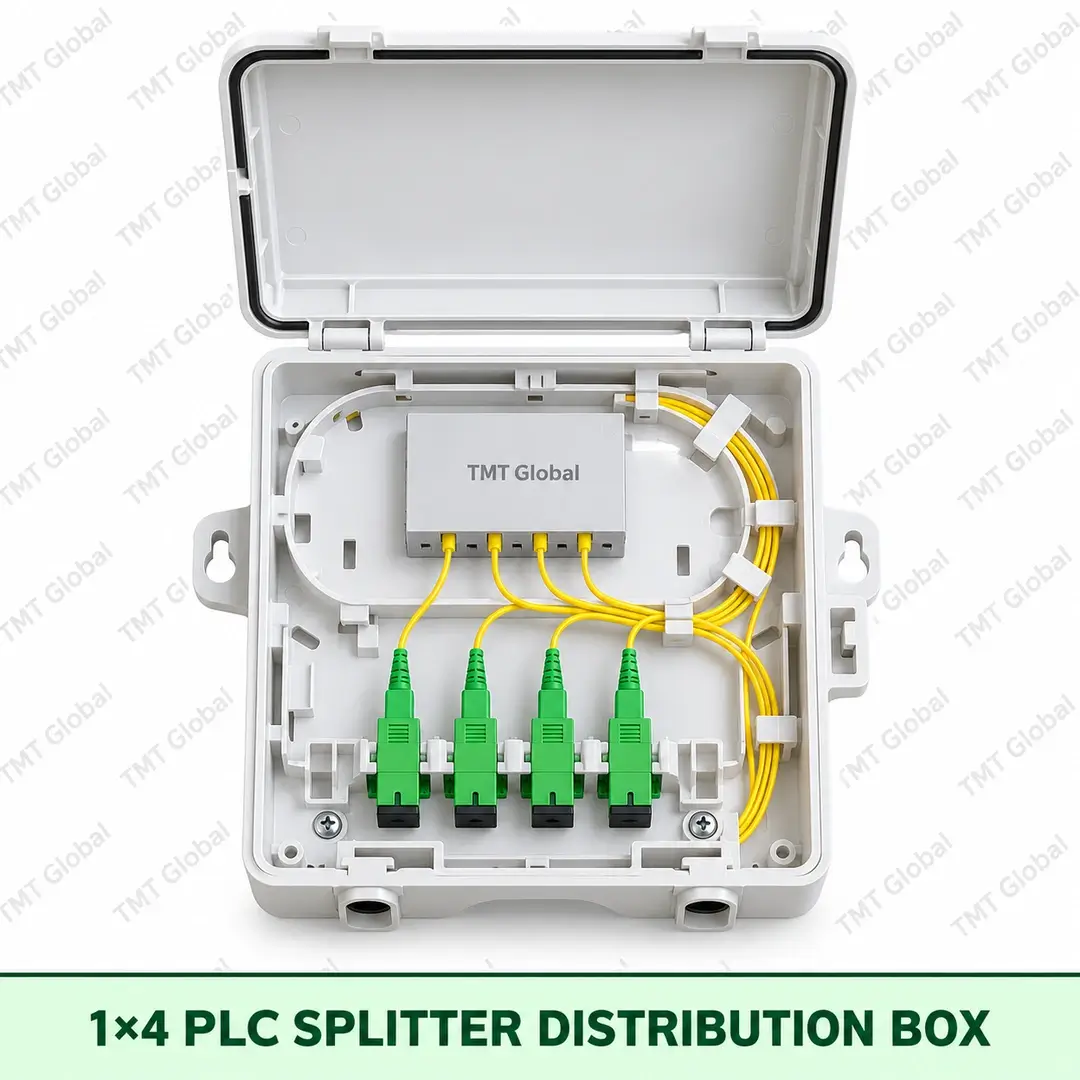

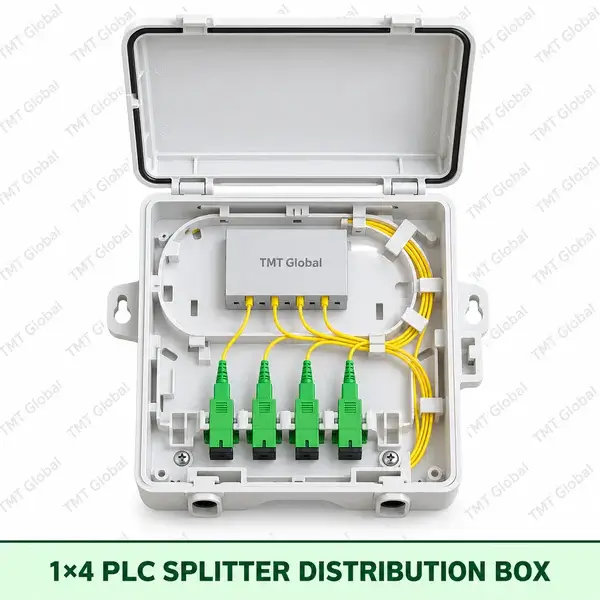

TMT Global 1×4 PLC Splitter Distribution Box Series
The TMT Global 1×4 PLC Splitter Distribution Box is designed for protected fibre termination, splicing and adapter presentation in plc splitter applications. The enclosure provides controlled fibre routing, splice protection and service access for 4-fibre installations, with SC/APC preferred connectivity and splitter loaded configuration.
KEY FEATURES
- 4-fibre termination capacity
- Flame-retardant ABS/PC enclosure construction
- SC/APC preferred interface configuration
- Bend-radius controlled fibre routing
- Splice sleeve and fibre management
- Cable entry and strain-relief provision
APPLICATIONS
- FTTH / PON distribution
- Access network distribution
- Building / MDU fibre distribution
- Telecom and fibre cabinets
OEM / PUBLICATION POSITIONING
Installation: secure the enclosure to the specified wall/pole surface, anchor incoming cable, maintain fibre bend radius and protect all splices. Ordering: TMT-FDB-04-SP14 defines the controlled base SKU; colour and minor accessories may be managed as approved options only when they do not change the technical design. Packaging: individual protective pack with SKU identification; mounting hardware/accessories as declared. OEM acceptance: supplier shall match capacity, material, interface, loading, splitter provision and environmental construction shown above and provide configuration/material evidence for approval before commercial release.
STANDARDS / TEST BASIS
- System application — ISO/IEC 11801 structured cabling context
- Connector interfaces — IEC 61754 interface family where adapters are fitted
- Passive component testing — IEC 61300 series where applicable
- Material compliance — RoHS / REACH declarations required where applicable
- Housing fire performance — UL 94 V-0 polymer target only where supported by material evidence
- Outdoor ingress protection — IEC 60529 rating only when supported by enclosure test evidence
QUALITY / ACCEPTANCE
- OEM acceptance: supplier shall match capacity, material, interface, loading, splitter provision and environmental construction shown above and provide configuration/material evidence for approval before commercial release.
TECHNICAL SPECIFICATION
| Parameter | TMT Declared Specification |
| Fibre capacity | 4 fibres |
| Enclosure / material | Engineering polymer / coated metal |
| Installation | Indoor / outdoor by model |
| Optical interface | SC/APC preferred |
| Loading | Splitter loaded |
| Splitter provision | 1×4 PLC |
| Splice management | Heat-shrink splice sleeve accommodation; tray/holder capacity matched to fibre count |
| Cable management | Controlled bend radius, cable anchoring and strain relief |
| Cable entry | Gland, grommet, knockout or rear entry according to model |
| Environmental | Weather-resistant construction; final IP rating subject to ordered enclosure and OEM test evidence |
| Brand | TMT Global |
|---|
| Item Name | Item Code / SKU | Controlled Description | Series | Brand | QR Code |
|---|---|---|---|---|---|
| 1x4 PLC Splitter Distribution Box | 1x4 PLC Splitter Distribution Box | 1x4 PLC Splitter Distribution Box | TMT Global |  | |
| 1x8 PLC Splitter Distribution Box | 1x8 PLC Splitter Distribution Box | 1x4 PLC Splitter Distribution Box | TMT Global | | |
| 1x16 PLC Splitter Distribution Box | 1x16 PLC Splitter Distribution Box | 1x4 PLC Splitter Distribution Box | TMT Global | | |
| 1x32 PLC Splitter Distribution Box | 1x32 PLC Splitter Distribution Box | 1x4 PLC Splitter Distribution Box | TMT Global | | |
| 2x16 PLC Splitter Distribution Box | 2x16 PLC Splitter Distribution Box | 1x4 PLC Splitter Distribution Box | TMT Global | |
