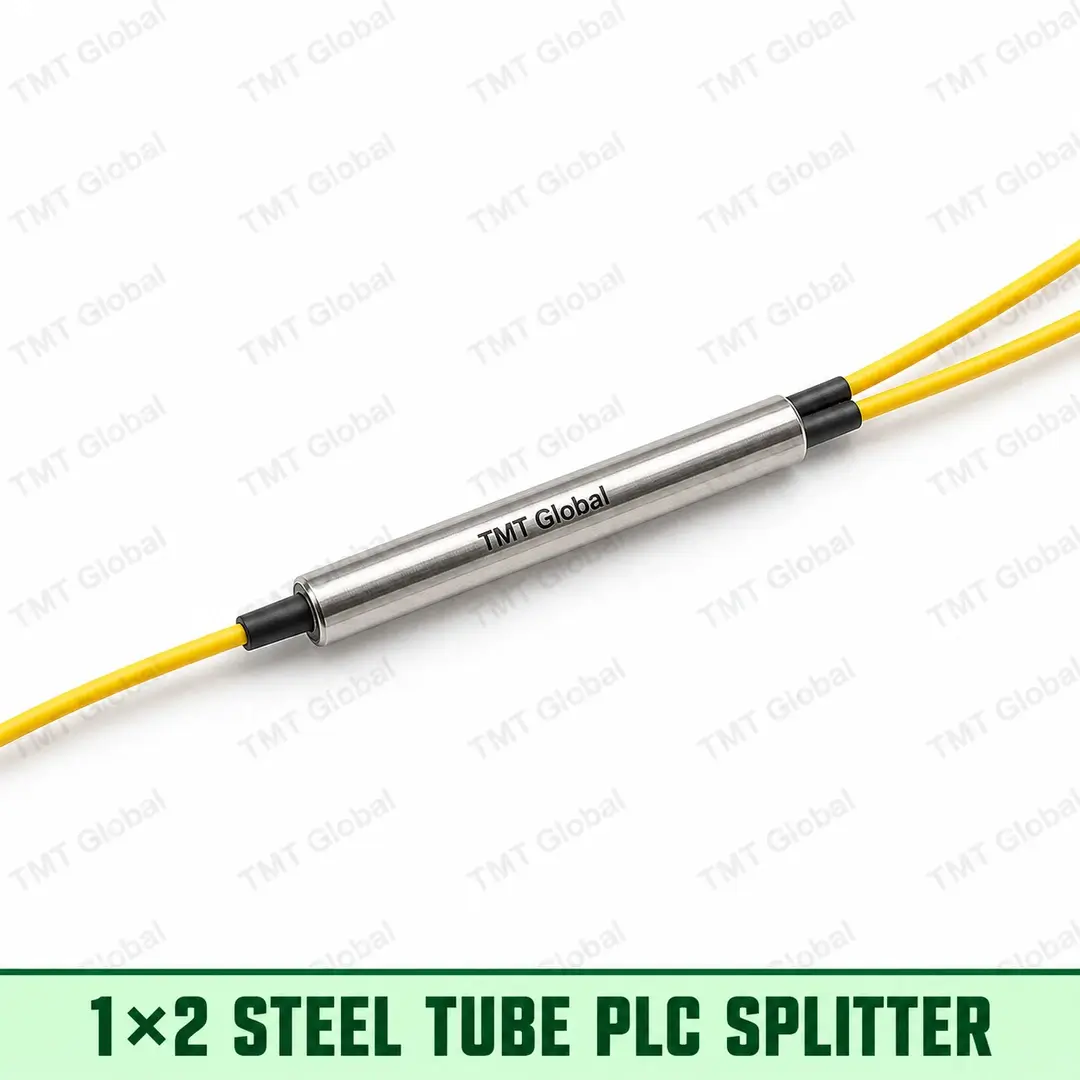

1×2 Steel Tube / Blockless PLC Splitter

KEY FEATURES

1×2 PLC optical split ratio
Steel tube / blockless construction
1260 to 1650 nm operating wavelength window
Low insertion loss and controlled channel uniformity
SC/APC, SC/UPC, LC or bare-fibre configuration options
RoHS / REACH compliant material requirement

TMT Global 1×2 Steel Tube / Blockless PLC Splitter Series

The TMT Global 1×2 Steel Tube / Blockless PLC Splitter is a passive optical power-splitting component for FTTx, PON, telecom access, ODF, fibre distribution box and rack/cabinet applications. It provides 1 input and 2 output optical paths in a steel tube / blockless construction, with controlled insertion loss, uniformity and return-loss performance for single-mode optical networks.

KEY FEATURES

1×2 PLC optical split ratio
Steel tube / blockless construction
1260 to 1650 nm operating wavelength window
Low insertion loss and controlled channel uniformity
SC/APC, SC/UPC, LC or bare-fibre configuration options
RoHS / REACH compliant material requirement

APPLICATIONS

FTTH / FTTx PON distribution
ODF and fibre distribution frames
Fibre distribution boxes and closures
Telecom access networks
Enterprise and campus fibre networks

OEM / PUBLICATION POSITIONING

Website / OEM statement: This SKU is defined by the specification on this datasheet. Any supplied product must match the declared split ratio, package construction, optical performance, connector configuration and documentation requirements.

STANDARDS / TEST BASIS

IEC 61300 series test methods for passive fibre components
IEC 61753 performance framework where applicable
IEC 61754 connector interface series where connectorised
RoHS and REACH documentation required
OEM must provide optical test report for every supplied batch

QUALITY / ACCEPTANCE

OEM must provide optical test report for every supplied batch

TECHNICAL SPECIFICATION

Parameter	TMT Declared Specification
Product type	1×2 Steel Tube / Blockless PLC Splitter
TMT SKU	TMT-FS-ST-12
Split ratio	1×2
Input / output	1 input / 2 output
Package type	Steel tube / blockless
Installation method	Compact module for boxes, closures and ODFs
Connector / lead option	Bare fibre or SC/LC connectorised
Fibre type	Single-mode G.657.A1/A2 or G.652.D as ordered
Operating wavelength	1260 to 1650 nm
Operating temperature	-40 C to +85 C target for component; final range by package
Storage temperature	-40 C to +85 C target
Packaging	Individual protected pack with product label and test report
Insertion loss	<= 4.2 dB
Uniformity	Ratio dependent, controlled by production test report
Return loss	>= 50 dB UPC / >= 55 dB APC target where connectorised
Polarisation dependent loss	<= 0.3 dB target
Directivity	>= 55 dB target
