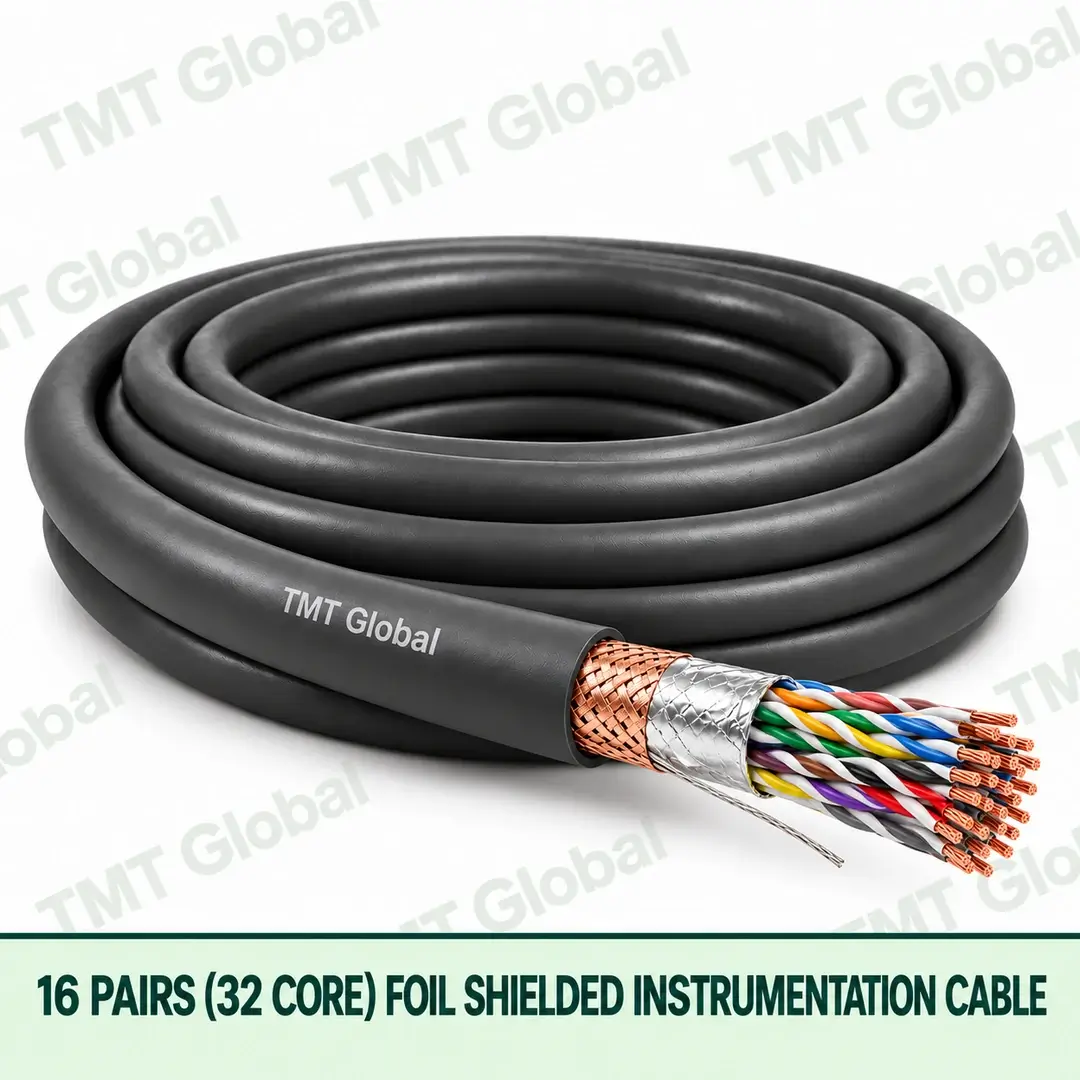

16 Pairs (32 Core) Foil Shielded Instrumentation Cable
KEY FEATURES
- 16 Pairs (32 Core) controlled twisted-pair construction
- Individually foil-screened pairs/triads plus overall foil screen and drain wire
- 14, 16, 18, 20, 22 and 24 AWG Series options
- PVC, LSZH and outdoor PE jacket choices
- Bare-copper conductor; solid or stranded by released drawing
- Exact searchable ordering code for every standard combination
Description
TMT 16 Pairs (32 Core) Foil Shielded Instrumentation Cable Series
TMT Global 16 Pairs (32 Core) Foil Shielded Instrumentation Cable is a configurable instrumentation-cable family for analogue, digital and process-control signals between field instruments, control panels, PLC/DCS systems and monitoring equipment. The product page fixes the 16 pairs (32 core) foil shielded construction, while the TMT Series ordering table provides exact AWG and jacket-specific item codes for customer search, quotation and project selection.
KEY FEATURES
- 16 Pairs (32 Core) controlled twisted-pair construction
- Individually foil-screened pairs/triads plus overall foil screen and drain wire
- 14, 16, 18, 20, 22 and 24 AWG Series options
- PVC, LSZH and outdoor PE jacket choices
- Bare-copper conductor; solid or stranded by released drawing
- Exact searchable ordering code for every standard combination
TYPICAL APPLICATIONS
- 4–20 mA and 0–10 V instrumentation loops
- Process measurement, transmitters and monitoring circuits
- PLC/DCS analogue and digital I/O wiring
- RTD, valve, actuator and positioner circuits
- Industrial plants, utilities and building-services systems
Technical Specification
| PARAMETER | SPECIFICATION |
| Product type | Instrumentation and process-control cable |
| Element configuration | 16 pairs / 32 insulated cores |
| Conductor material | Bare copper |
| Conductor construction | Solid or stranded construction |
| Available conductor sizes | 14 / 16 / 18 / 20 / 22 / 24 AWG |
| Element formation | Two insulated conductors twisted as each pair |
| Core insulation | PVC / PE / halogen-free compound options, construction dependent |
| Screening | Individually foil-screened pairs/triads plus overall foil screen and drain wire |
| Outer-jacket options | PVC / LSZH / PE Outdoor |
| Cable form | Round |
| Standard colours | Grey for PVC/LSZH; black for PE Outdoor |
| Package length | 305 m standard TMT package |
| Ordering basis | AWG and jacket define the exact searchable Series SKU |
| Series records | 18 searchable Series SKUs per family |
AWG / NOMINAL AREA MATRIX
| AWG | NOMINAL AREA | SERIES AVAILABILITY |
| 14 AWG | 2.08 mm² | PVC / LSZH / PE Outdoor • 305 m • Factory engineering |
| 16 AWG | 1.31 mm² | PVC / LSZH / PE Outdoor • 305 m • Project engineering |
| 18 AWG | 0.823 mm² | PVC / LSZH / PE Outdoor • 305 m • Main market |
| 20 AWG | 0.518 mm² | PVC / LSZH / PE Outdoor • 305 m • Main market |
| 22 AWG | 0.326 mm² | PVC / LSZH / PE Outdoor • 305 m • Main market |
| 24 AWG | 0.205 mm² | PVC / LSZH / PE Outdoor • 305 m • Project engineering |
Additional information
| AWG | 14 awg, 16 awg, 18 awg, 20 awg, 22 awg, 24 awg |
|---|---|
| Brand | TMT Global |
| Colour | Black, Grey |
| Jacket Type | LSZH, PE Outdoor, PVC |
| Length | 305 m |
Ordering Information
| Item Name | Item Code / SKU | Series | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|---|
| 16 Pairs (32 Core) Foil Shielded Instrumentation Cable | P16S-MC | 14 awg | PVC | Grey | 305 m |  | |
| 16 Pairs (32 Core) Foil Shielded Instrumentation Cable | P16S-MC | 14 awg | LSZH | Grey | 305 m | | |
| 16 Pairs (32 Core) Foil Shielded Instrumentation Cable | P16S-MC | 14 awg | PE Outdoor | Black | 305 m | | |
| 16 Pairs (32 Core) Foil Shielded Instrumentation Cable | P16S-MC | 16 awg | PVC | Grey | 305 m | | |
| 16 Pairs (32 Core) Foil Shielded Instrumentation Cable | P16S-MC | 16 awg | LSZH | Grey | 305 m | | |
| 16 Pairs (32 Core) Foil Shielded Instrumentation Cable | P16S-MC | 16 awg | PE Outdoor | Black | 305 m | | |
| 16 Pairs (32 Core) Foil Shielded Instrumentation Cable | P16S-MC | 18 awg | PVC | Black | 305 m | | |
| 16 Pairs (32 Core) Foil Shielded Instrumentation Cable | P16S-MC | 18 awg | LSZH | Grey | 305 m | | |
| 16 Pairs (32 Core) Foil Shielded Instrumentation Cable | P16S-MC | 18 awg | PE Outdoor | Black | 305 m | | |
| 16 Pairs (32 Core) Foil Shielded Instrumentation Cable | P16S-MC | 20 awg | PVC | Grey | 305 m | | |
| 16 Pairs (32 Core) Foil Shielded Instrumentation Cable | P16S-MC | 20 awg | LSZH | Grey | 305 m | | |
| 16 Pairs (32 Core) Foil Shielded Instrumentation Cable | P16S-MC | 20 awg | PE Outdoor | Black | 305 m | | |
| 16 Pairs (32 Core) Foil Shielded Instrumentation Cable | P16S-MC | 22 awg | PVC | Grey | 305 m | | |
| 16 Pairs (32 Core) Foil Shielded Instrumentation Cable | P16S-MC | 22 awg | LSZH | Grey | 305 m | | |
| 16 Pairs (32 Core) Foil Shielded Instrumentation Cable | P16S-MC | 22 awg | PE Outdoor | Black | 305 m | | |
| 16 Pairs (32 Core) Foil Shielded Instrumentation Cable | P16S-MC | 24 awg | PVC | Grey | 305 m | | |
| 16 Pairs (32 Core) Foil Shielded Instrumentation Cable | P16S-MC | 24 awg | LSZH | Grey | 305 m | | |
| 16 Pairs (32 Core) Foil Shielded Instrumentation Cable | P16S-MC | 24 awg | PE Outdoor | Black | 305 m | |
