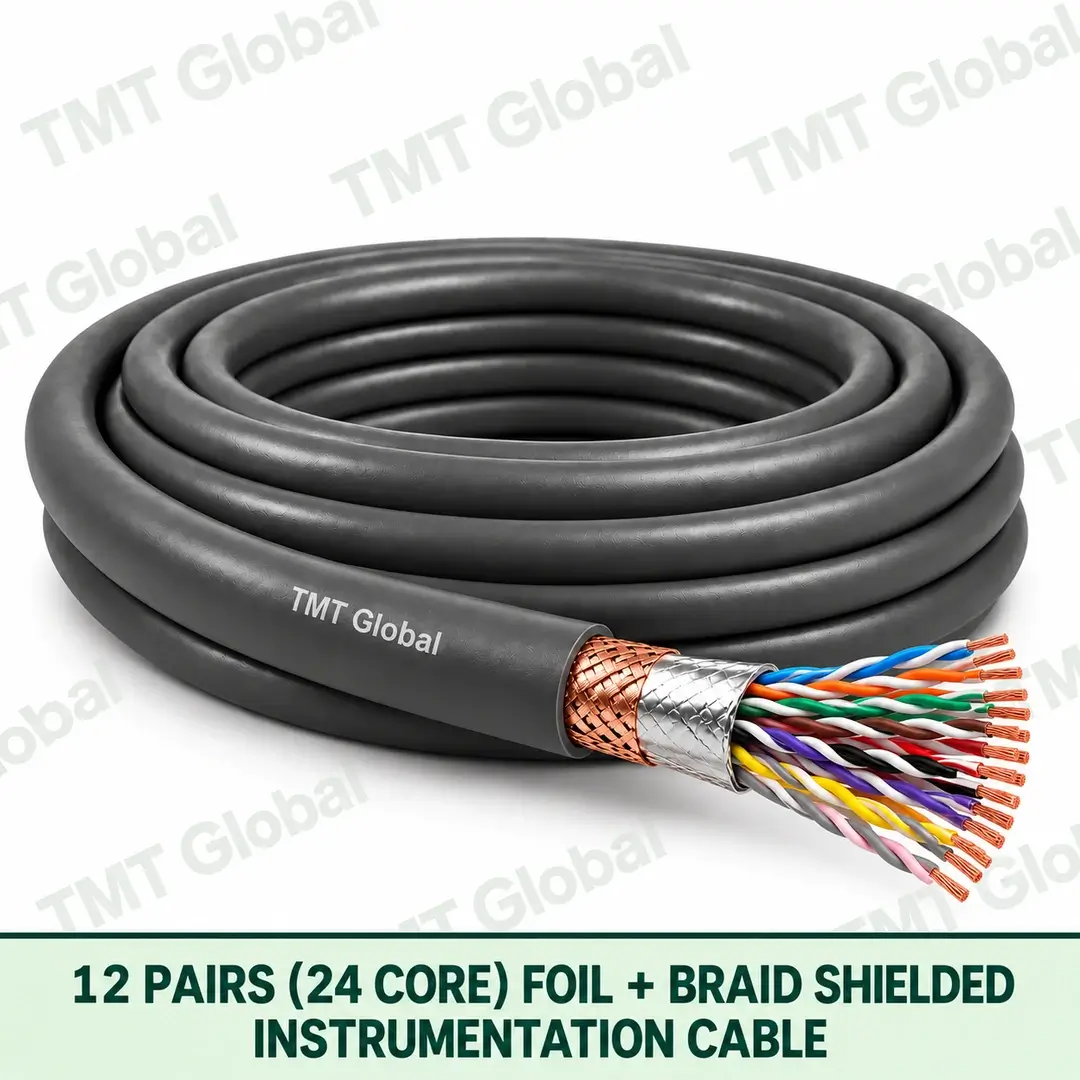

12 Pairs (24 Core) Foil + Braid Shielded Instrumentation Cable

Choosing the 12 Pairs (24 Core) Foil + Braid Shielded Instrumentation Cable

Twelve pairs let several 4–20 mA loops share one route from a field junction box to the marshalling cabinet. Foil plus tinned-copper braid gives the strongest protection against electrical noise and adds mechanical strength, which is why it is the usual choice in plant rooms, near VFDs and motors, and across industrial sites.

Related options in this range: 8 Pairs (16 Core) Foil + Braid Shielded Instrumentation Cable · 6 Triads (18 Core) Foil + Braid Shielded Instrumentation Cable · 16 Pairs (32 Core) Foil + Braid Shielded Instrumentation Cable · 12 Pairs (24 Core) Foil Shielded Instrumentation Cable · 12 Pairs (24 Core) Unshielded Instrumentation Cable

Order code: P12B-MC. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT 12 Pairs (24 Core) Foil + Braid Shielded Instrumentation Cable Series

TMT Global 12 Pairs (24 Core) Foil + Braid Shielded Instrumentation Cable is a configurable instrumentation-cable family for analogue, digital and process-control signals between field instruments, control panels, PLC/DCS systems and monitoring equipment. The product page fixes the 12 pairs (24 core) foil + braid shielded construction, while the TMT Series ordering table provides exact AWG and jacket-specific item codes for customer search, quotation and project selection.

KEY FEATURES

• 12 Pairs (24 Core) controlled twisted-pair construction
• Individually foil-screened pairs/triads plus overall foil and tinned-copper braid
• 14, 16, 18, 20, 22 and 24 AWG Series options
• PVC, LSZH and outdoor PE jacket choices
• Bare-copper conductor; solid or stranded by released drawing
• Exact searchable ordering code for every standard combination

TYPICAL APPLICATIONS

• 4–20 mA and 0–10 V instrumentation loops
• Process measurement, transmitters and monitoring circuits
• PLC/DCS analogue and digital I/O wiring
• RTD, valve, actuator and positioner circuits
• Industrial plants, utilities and building-services systems

Technical Specification

AWG / NOMINAL AREA MATRIX
