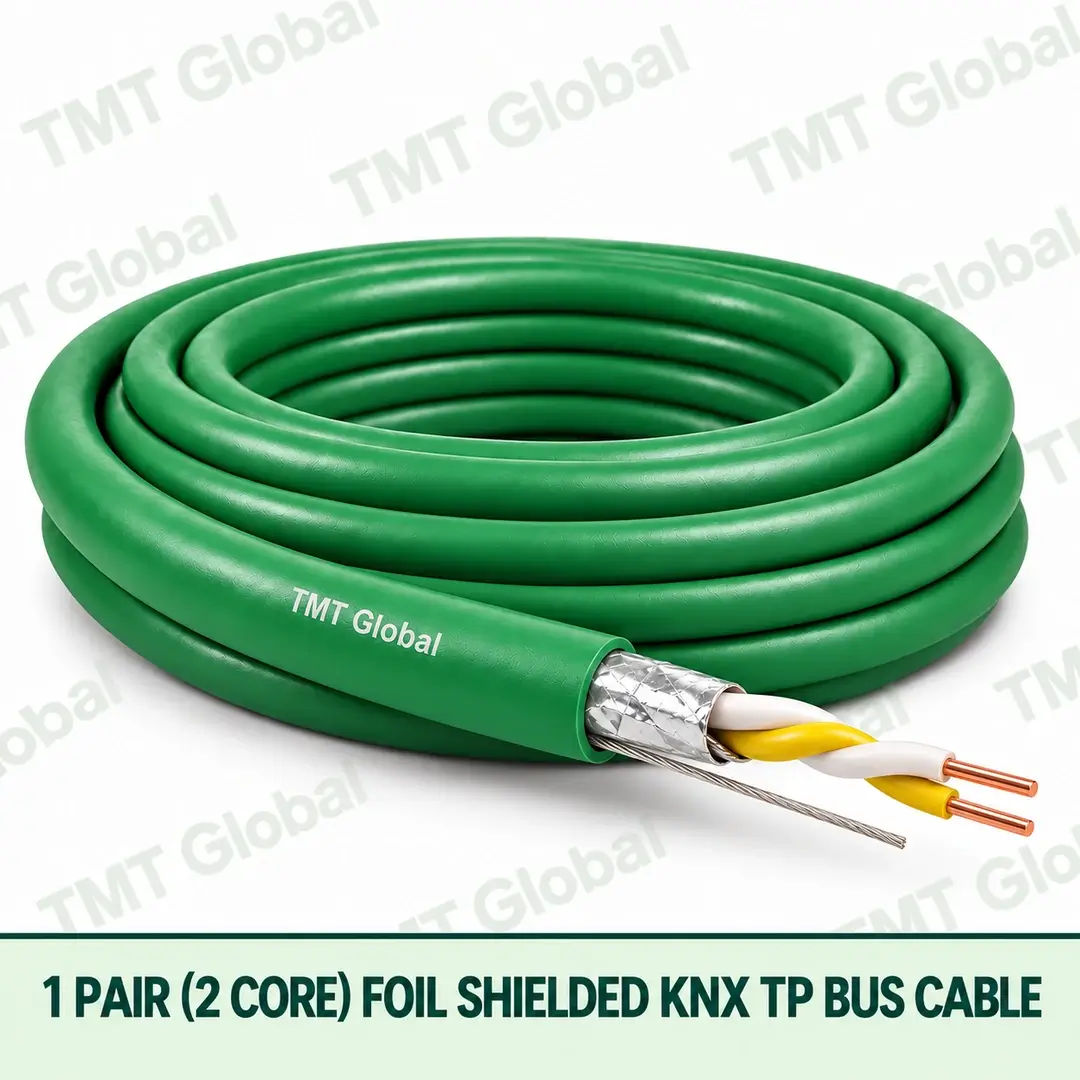

1 Pair (2 Core) Foil Shielded KNX TP Bus Cable
KEY FEATURES
- 1 × 2 × 0.8 mm solid bare-copper twisted-pair construction
- Overall aluminium/polyester foil + drain wire
- PVC green, LSZH green and PE Outdoor black ordering options
- 20 AWG item-code field representing the 0.8 mm KNX conductor format
- Exact searchable SKU for every standard jacket option
- 305 m standard TMT package; project lengths subject to release
Description
TMT Global 1 Pair (2 Core) Foil Shielded KNX TP Bus Cable Series
TMT Global 1 Pair (2 Core) Foil Shielded KNX TP Bus Cable is a controlled twisted-pair cable family for KNX TP building-automation bus installations. This is a valid secondary market option for compact single-pair installations. The product page fixes the 1 × 2 × 0.8 mm foil shielded construction, while the TMT Series ordering table provides exact jacket-specific item codes for customer search, quotation and project selection.
KEY FEATURES
- 1 × 2 × 0.8 mm solid bare-copper twisted-pair construction
- Overall aluminium/polyester foil + drain wire
- PVC green, LSZH green and PE Outdoor black ordering options
- 20 AWG item-code field representing the 0.8 mm KNX conductor format
- Exact searchable SKU for every standard jacket option
- 305 m standard TMT package; project lengths subject to release
TYPICAL APPLICATIONS
- KNX TP bus lines and device interconnection
- Lighting, HVAC, blinds and room-control networks
- Residential, commercial, hospitality and public buildings
- Compact single-pair KNX TP installation
- Secondary compact KNX TP installations
Technical Specification
| PARAMETER | SPECIFICATION |
| Product type | KNX TP bus cable family |
| Pair / core configuration | 1 × 2 × 0.8 mm (1 pair / 2 core) |
| Conductor | Solid bare copper, nominal 0.8 mm diameter |
| Nominal conductor area | 0.50 mm² nominal (derived from 0.8 mm diameter) |
| Core insulation | Polyethylene or equivalent insulation for the declared KNX TP construction |
| Screening | Overall aluminium/polyester foil + drain wire |
| Outer-jacket options | PVC / LSZH / PE Outdoor |
| Standard colours | Green for PVC/LSZH; black for PE Outdoor |
| Cable form | Round |
| Installation | Fixed KNX TP bus installation |
| Package length | 305 m standard TMT package |
| Item-code designation | 20 AWG code represents the nominal 0.8 mm solid-conductor KNX format |
| Series position | Secondary market family |
AWG / NOMINAL AREA / SERIES AVAILABILITY
| AWG / NOMINAL AREA | SERIES AVAILABILITY |
| 20 AWG / 0.50 mm² | PVC Green • 305 m |
| 20 AWG / 0.50 mm² | LSZH Green • 305 m |
| 20 AWG / 0.50 mm² | PE Outdoor Black • 305 m |
| 20 AWG / 0.50 mm² | 02S-KX SERIES • 3 searchable SKUs |
Additional information
| AWG | 20 awg |
|---|---|
| Colour | Green |
| Jacket Type | LSZH, PE Outdoor, PVC |
| Brand | TMT Global |
| Length | 305 m |
Ordering Information
| Item Name | Item Code / SKU | AWG / mm² | Jacket | Colour | Pack | QR Code |
|---|---|---|---|---|---|---|
| 1 Pair (2 Core) Foil Shielded KNX TP Bus Cable | 20 awg | PVC | Green | 305 m |  | |
| 1 Pair (2 Core) Foil Shielded KNX TP Bus Cable | 20 awg | LSZH | Green | 305 m | | |
| 1 Pair (2 Core) Foil Shielded KNX TP Bus Cable | 20 awg | PE Outdoor | Green | 305 m | |
