Access Control Stand alone IP68

$217.00

General Specification
Card type : NL
Waterproof :  degree IP68
Environment Humidity : 10%~90%
Lock output : t ≤3A
Working voltage : DC12-24V ±10%
Static electricity : ≤30mA
Alarm output : ≤20A
Card read distance : 2~5cm
Door Opening Time :  0~99s(Adjustable)
All-in-one : WG26 output/input
Access Way : card, password, card + password
Dimension : 120x80x25mm
Product ID : TMT-1S110311

Description

Description

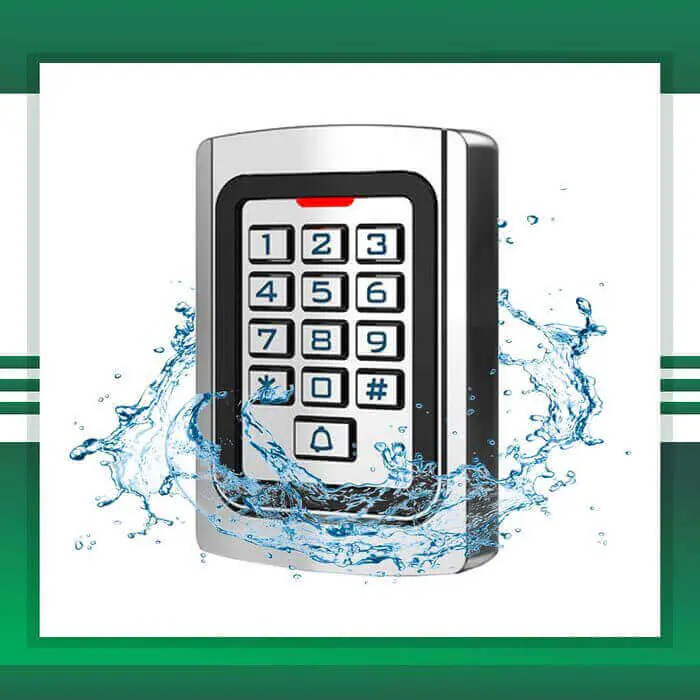

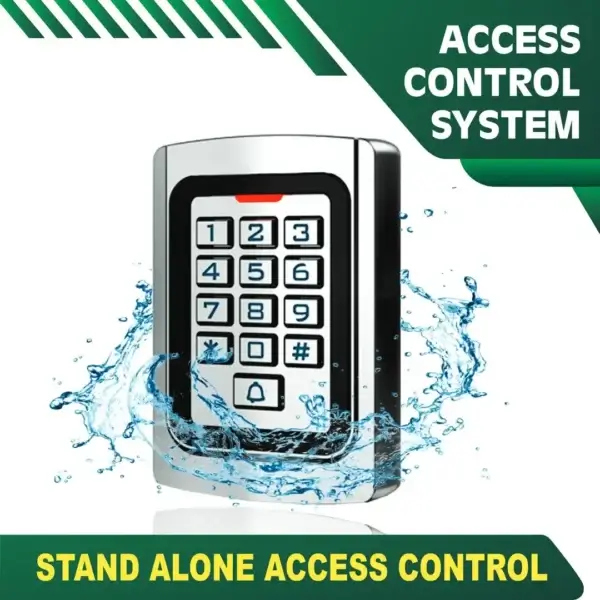

TMT Global Access Control Stand alone Water Proof IP68

TMT Global Access Control Stand alone IP68 single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is Suitable for Mounting Either Indoor or Outdoor in Harsh Environments. It is Housed in a Strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in either a bright silver or matt silver finish.

Features

  • Waterproof, conforms to IP65/IP68
  • Strong Zinc Alloy Electroplated anti-vandal case
  • Full programming from the keypad
  • 2000 users, supports Card, PIN, Card + PIN
  • Can be used as a stand alone keypad
  • Backlight keys
  • Wiegand 26 input for connection to external reader
  • Wiegand 26 output for connection to a controller
  • Adjustable Door Output time, Alarm time, Door Open time
  • Very low power consumption (30mA)
  • Fast operating speed, <20ms with 2000 users
  • Lock output current short circuit protection
  • Easy to install and program
  • Built in light dependent resistor (LDR) for anti tamper
  • Built in buzzer
  • Red, Yellow and Green LEDS display the working status

Specification
Card type: NL
Waterproof degree: IP68
Environment Humidity: 10%~90%
Lock output: ≤3A
Working voltage: DC12-24V ±10%
Static electricity: ≤30mA
Alarm output: ≤20A
Output short circuit protection time: 100μS
Card read distance: 2~5cm
Ambient temperature: -45℃~60℃
Door Opening Time: 0~99s(Adjustable)
Metal structure design: anti-vandal Digital backlit keyboard
All-in-one : WG26 output/input
User capacity: 2000 card user card, 2000 user password
Access Way: card, password, card + password
The doorbell button and interface: buttons and isolation circuit Connect to any external bell
Dimension: 120x80x25mm
