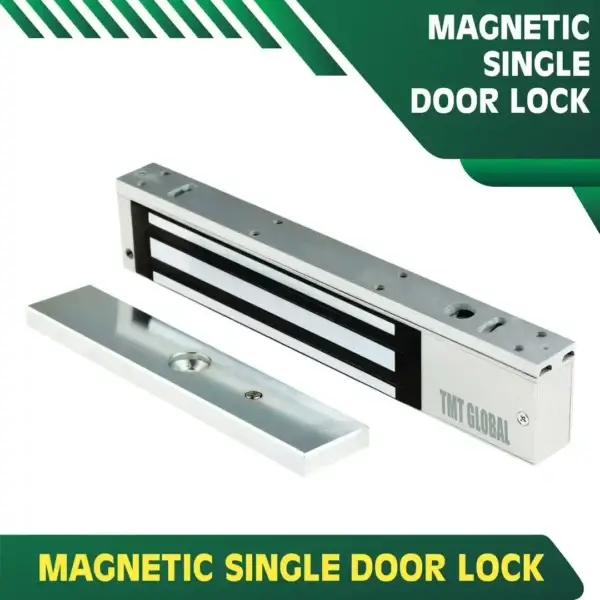

door magnetic Lock single Door 280 kg

Description

TMT Global  Magnetic Door Lock single Door 280kg

TMT GLOBAL door magnetic Lock single Door 280 kg is using the leading production equipment and packaging technology of the international. Produced door lock magnet the electromagnetic lock is not only higher than similar products by more than 20% of the lock holding force, but also the antioxidant capacity of the surface of magnetic lock is reached the international advanced level.door magnetic

Application:

• airports
• subways
• banks
• prisons
• intelligent buildings.

General Specification
Lock Size : 170Lx35Wx21H(mm)
Armature plate : 130Lx33Wx9.3H(mm)
Holding Force : 280kg(350Lbs)
Voltage : DC12V or DC24V (adjustable)
Current Draw : 12V/500mA 24V/250mA
Signal Output : Dry Contact, Max Rating of Contact Current 3A
Surface Temp :  ≤+20℃
Operating Temp:  -10～+55℃(14-131F)
Finishes for Magnetic : Zinc
Weight : 1.1kg
Model No. : TMT-7646
