24 Core OM2 Fiber Optic Cable Multimode Indoor Outdoor
$0.00
General Specification
Products : Multi Mode Fiber Optic cable
Fiber Count : 24
Fiber Type : 50/125 OM2
Armored : N
Outer Jacket : PE
Attenuation (max/KM)Â : 3.5 dB/km (850) 1.5 dB/km (1300 nm)
Length/ Drum : 2000 m Drum ±5%
Product IDÂ : TMT-242LDK
Description

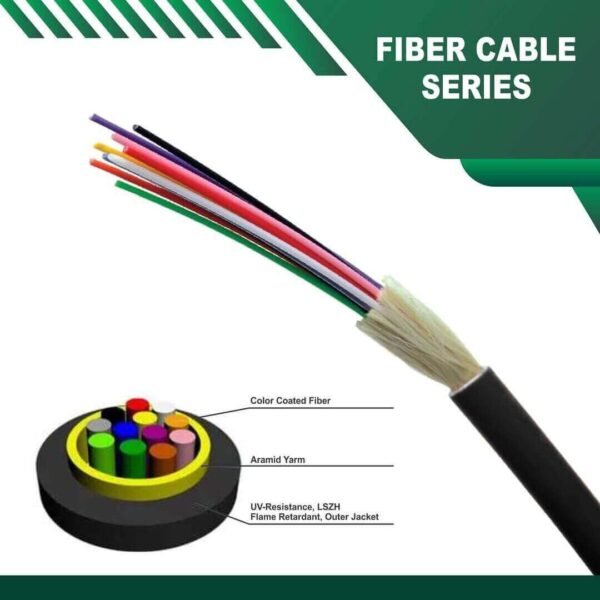

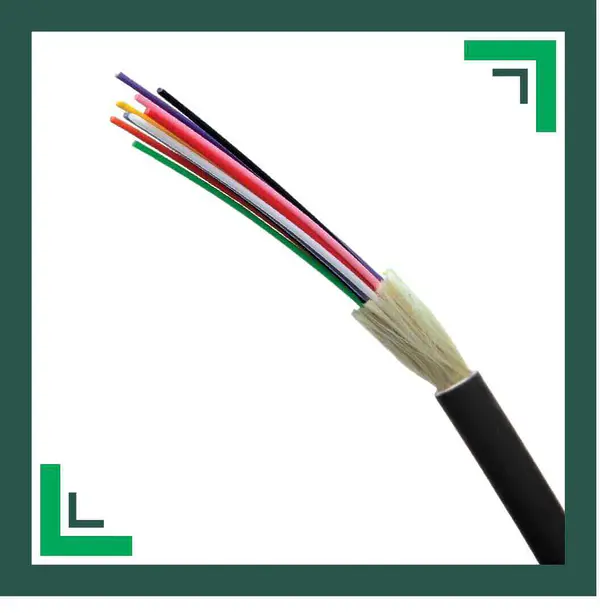

TMT Global 24 Core OM2 Fiber Optic Cable Multimode Indoor Outdoor
TMT GLOBAL 24 Core OM2 Fiber Optic Cable Multimode Indoor Outdoor Multimode Indoor/outdoor Fiber Cable Loose/Tight Tubes,OM3 50/125μm glass fiber fiber optic cable high speed long distance single mode fiber higher bandwidth signal loss fiber cables copper cables indoor fiber indoor fiber optic cable fiber optic cable specifications 6,8,12,24-Core LSZH.
PHYSICAL DESCRIPTION
- Products: multi mode Fiber optic cable
- Tube Filling Compound: Thixotropic jelly /N
- Fiber Type: 50/125 OM2
- Tube material: PBT ( Polybutylene Terephthalate)
- Armored: N
- Packing Detail
- Fiber Count: 6,8,12,24,
- Tube Outer/Inner Diameter(mm): 3.0/2.0 ±
- Cable Diameter(mm): 4.2*-12
- Cable Weight(kg/km): 45±
- Length/ Drum: 2000 m Drum ±5%
- Ripcord: Polyester cord
- Outer Jacket: PE,MDPE, LSZH
Mechanical and Environmental Properties
Physical tests                                Value                          Standard
Tensile Strength                                 2700 N (During Installation)       IEC 60794-1-E1
                                                1700 N (During Operation)
Impact Resistance                               10J, 3 impacts                    IEC 60794-1-E4
Crush Resistance                                220 N/cm                        IEC 60794-1-E3
Temperature Cycling                             -40 to +70 °C                     IEC 60794-1-F1
Flame Retardancy                               According to IEC 60332-3          IEC 60332-3
Cable Bending Radius
Bend Radius (during installation)                 20x Cable Diameter                IEC 60794-1-2-E11A
Bend Radius (during Service) 1                    0x Cable Diameter                 IEC 60794-1-E11
Repeating Bending                               20x Cable Diameter                IEC 60794-1-E6
Temperature Range)
Operation Temperature                          -40 to +70 C                       IEC 60794-1-2-F1
Storage and Transportation Temperature          -40 to +70 C
Installation Temperature                         -30 to +60 C
Optical Characteristics
Attenuation (max): 3.5 dB/km (850 nm) 1.5 dB/km (1300 nm)
Bandwidth (Laser EMB): 2000 MHz.km(850) 500 MHz.km (1300nm)
Bandwidth (Overfilled): 3500 MHz.km (850 nm) 500 MHz.km (1300 nm)
Numerical Aperture:0.2±0.015
Core Diameter: 50 ± 2 μm
Cladding Diameter: 125 ± 1μm
Core/Clad Concentricity error: ≤ 1 μm
Cladding non-circularity:≤ 0.7 %
Coating Diameter:242 ± 5 μm
Proof Test: ≥ 100kpsi or 0.7GPa
Bandwidth (Laser EMB): 2000 MHz.km(850) 500 MHz.km (1300nm)
Bandwidth (Overfilled): 3500 MHz.km (850 nm) 500 MHz.km (1300 nm)
Numerical Aperture:0.2±0.015
Core Diameter: 50 ± 2 μm
Cladding Diameter: 125 ± 1μm
Core/Clad Concentricity error: ≤ 1 μm
Cladding non-circularity:≤ 0.7 %
Coating Diameter:242 ± 5 μm
Proof Test: ≥ 100kpsi or 0.7GPa
item name: Fiber Optic Cable Multimode Indoor-Outdoor Armored OM2 24Core
