Name: Fiber Optic Cable multimode 12 core fiber - TMT Global
Brand: TMT GLOBAL
SKU: TMT-123LDK
Price: 3.00 USD
Availability: InStock
Rating: 5.00 (1 reviews)

Description

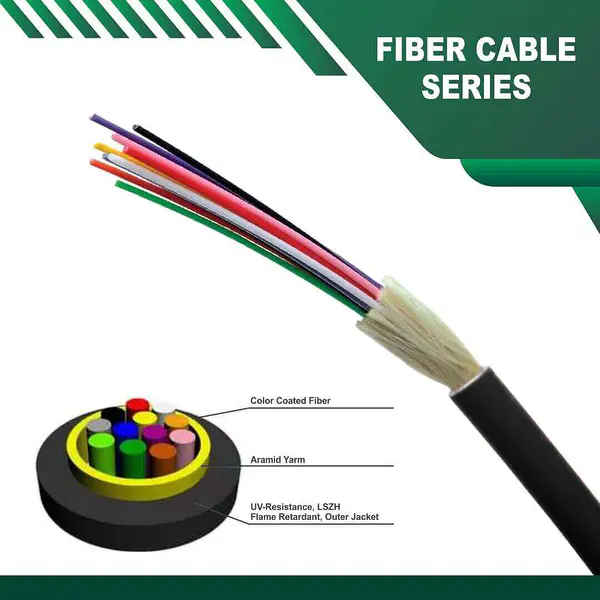

TMT Global Fiber Optic Cable multimode 12 core fiber optic cable om3

TMT GLOBAL provides high-strength optical fiber cables for fiber optic cable core use in various industrial, indoor, and outdoor applications. Offering unique fibre cores properties inoutdoor duplex fiber patch cable and benefits for fiber optic cable different types of use, our fiber patch cable 10g om3 communications duplex fiber patch cable 10g optical fiber cable products can easily meet complex high speed data centers om3 om4 application requirements and specifications. optical fiber cable FTTH ,FTTX , indoor/outdoor SM/MM, OS1,OS2 ,OM1,OM2,OM3,OM4 is compliant with ISO/IEC and ANSI/TIA Standard. Fiber Optic Cable multimode 12 core fiber optic cable om3

PHYSICAL DESCRIPTION

Products: multi mode Fiber optic cable
Tube Filling Compound: Thixotropic jelly /N
Fiber Type: 50/125 OM2
Tube material: PBT ( Polybutylene Terephthalate)
Armored: N
Packing Detail
Fiber Count: 6,8,12,24,
Tube Outer/Inner Diameter(mm): 3.0/2.0 ±
Cable Diameter(mm): 4.2*-12
Cable Weight(kg/km): 45±
Length/ Drum: 2000 m Drum ±5%
Ripcord: Polyester cord
Outer Jacket: PE,MDPE, LSZH

Mechanical and Environmental Properties

Physical tests Value Standard

Tensile Strength 2700 N (During Installation) IEC 60794-1-E1

1700 N (During Operation)

Impact Resistance 10J, 3 impacts IEC 60794-1-E4

Crush Resistance 220 N/cm IEC 60794-1-E3

Temperature Cycling -40 to +70 °C IEC 60794-1-F1

Flame Retardancy According to IEC 60332-3 IEC 60332-3

Cable Bending Radius

Bend Radius (during installation) 20x Cable Diameter IEC 60794-1-2-E11A

Bend Radius (during Service) 1 0x Cable Diameter IEC 60794-1-E11

Repeating Bending 20x Cable Diameter IEC 60794-1-E6

Temperature Range)

Operation Temperature -40 to +70 C IEC 60794-1-2-F1

Storage and Transportation Temperature -40 to +70 C

Installation Temperature -30 to +60 C

Optical Characteristics

Attenuation (max): 3.5 dB/km (850 nm) 1.5 dB/km (1300 nm)
Bandwidth (Laser EMB): 2000 MHz.km(850) 500 MHz.km (1300nm)
Bandwidth (Overfilled): 3500 MHz.km (850 nm) 500 MHz.km (1300 nm)
Numerical Aperture:0.2±0.015
Core Diameter: 50 ± 2 μm
Cladding Diameter: 125 ± 1μm
Core/Clad Concentricity error: ≤ 1 μm
Cladding non-circularity:≤ 0.7 %
Coating Diameter:242 ± 5 μm
Proof Test: ≥ 100kpsi or 0.7GPa

item name: Fiber Optic Cable multimode 12 core fiber optic cable om3
