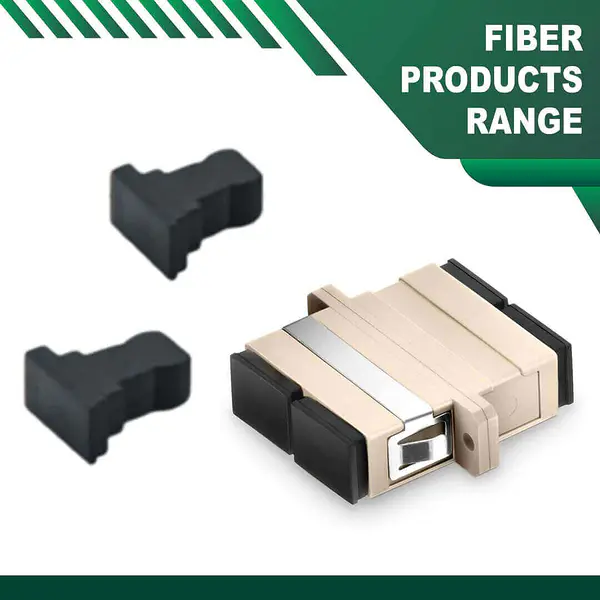

Optical Connector adapter om2 SC-UPC MultiMode Duplex

TMT GLOBAL Optical Connector adapter om2 SC-UPC Multi Mode Duplex

TMT Global Technology LTD aims Optical Connector adapter om2 SC-UPC Multimode Duplex  to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate automation CCTV Systems Lighting Control Systems PIR Motion Sensors UHF Long Range Readers Burglar Alarm Systems Automatic Parking Solutions SMATV Systems Smart Home Automation Audio Video Intercom Systems Audio Visual Systems Public Address Systems Central Clock Systems. Industrial and Building automation Cables and Accessories which leads to satisfaction and reliability to customers.

All TMT Global Products meet or Exceed Rigorous Industry and Regulatory Standards for Quality Reliability and efficiency. From Design and Fabrication to Finished Product Assembly each phase in the Manufacturing process is rigorously monitored and measured to ensure the highest quality durability and operating excellence.Optical Connector adapter om2 SC-UPC MultiMode Duplex

Features
TIA/EIA-604 FOCIS-10 compatible; exceeds TIA/EIA-568-B.3 requirements
Complies with IEC 61754-4, Flammability UL94 V-0 standard
Available in Flanged and Flangeless options
Precision connection with sleeve
Low insertion loss, High Return loss
Good interchangeability and reliability
Meet IEC and ROHS standards
High precision of mechanical dimensions Accuracy

Products Specifications
Adapter Type: LC-LC,SC-SC
Polish Type: UPC
Body Type: Simplex, Duplex
Fiber Mode: Multi Mode
Insertion Loss: ≤0.2dB
Durability: 1000 time
Flammability Rate: UL94-V0
Alignment Sleeve Material: Ceramic
Storage Temp（℃）: -40～+85

Environment and Mechanical
Properties                                        Test condition                                                     Conformance          Test result
Vibration                                               10-55Hz, 1.5mm, 60min                                           IEC61300-2-1             ≤0.2dB
Mating Durability                                1000 Mating, clean every 25 mating                     IEC61300-2-2             ≤0.2dB
Impact                                                    1.5m, 8 drops                                                              IEC61300-2-6             ≤0.2dB
Strength of Coupling Mechanism    40N, 10Min, L=22-28cm                                          IEC61300-2-12           ≤0.2dB
Temperature Cycling                          40ºC to +75ºC, 40 cycles                                          IEC61300-2-22           ≤0.2dB
Temperature humidity cycling          40ºC， 95%， 96Hr                                                 IEC61300-2-21            ≤0.2dB
Operating Temperature                     -40ºC to +85ºC
Storage Temperature                          -40ºC to +85ºC
