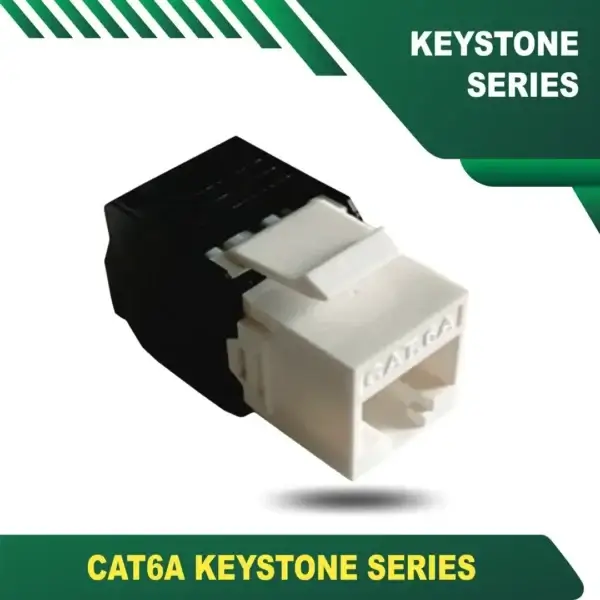

cat6a keystone jack UTP Tools Less

TMT GLOBAL cat6a keystone jack UTP Tools Less

TMT Global Technology LTD aims to provides the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate automation CCTV Systems Lighting Control Systems PIR Motion Sensors UHF Long Range Readers Burglar Alarm Systems Automatic Parking Solutions SMATV Systems Smart Home Automation Audio Video Intercom Systems Audio Visual Systems Public Address Systems Central Clock Systems. Industrial and Building automation Cables and Accessories which leads to Satisfaction and Reliability to customers. All TMT Global Products meet or Exceed Rigorous Industry and Regulatory Standards for Quality, Reliability, and Efficiency.cat6a keystone jack UTP Tools Less

Features
RJ45 8P 8C 180˚C 50u Punch Down Jack
Terminating 4 pairs, 22-26 AWG Cable
Universal labels color coded for T568A and T568B wiring schemes
Fitting high density keystone panel
UL, ETL, RoHS certified
IDC contacts that allows re-termination without damaging the unit

Specifications

• Housing: High-impact Flame Retardant Polycarbonate, UL94V-0
• Contact resistance: 20M.Ω
• Spring Wire: Phosphor Bronze With Gold-plated 3u-50u
• Data trans rate: UP to 500Mbps
• IDC Contact: Phosphor Bronze
• Dielectric Withstand Voltage: 1,000VAC RMS@60Hz (1 Minute)
• Insertion life: ≥1000 mating cycles
• DC Resistance: 0.1 ohm MAX
• Operating Temperature Range: -600 to 800
• Voltage: 150 VAC MAX
• IDC Accept: 22-26 AWG
• IDC insertion life: 250 times(min.)
• Wire Scheme: T568A/B
• IDC: 22-26AWG
• Insulation Resistance: 500Ω
• Gold plating: 3 μ”
• Current Rating: 1.5Amps
• Plug insertion force: 17kg(min)
