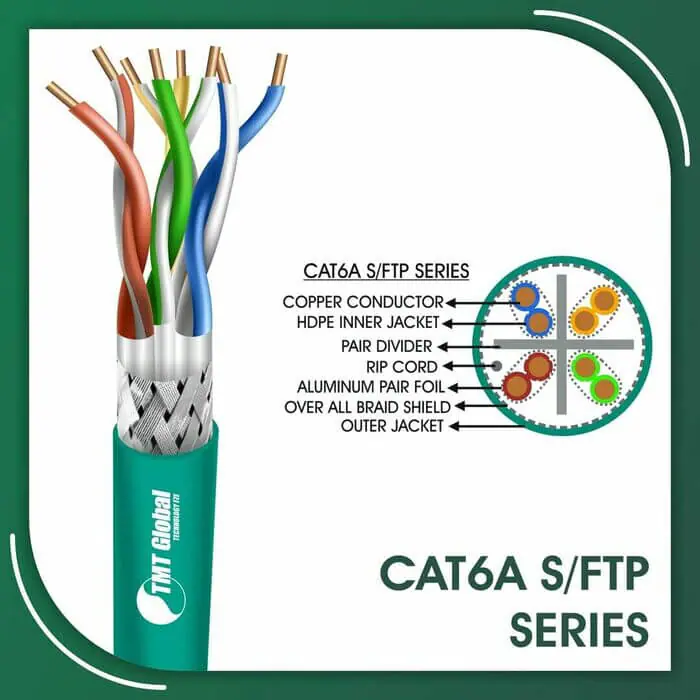

Cat6a Ethernet Cable 23awg 4 twisted pair S-FTP LSZH 305m
$430.00
Standards: ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -EA)
General Specification:
Conductor: BARE Copper
Conductor Size: 23AWG
No. Of Pairs: 4 twisted pairs
Overall Coverage: N/L
Outer Jacket: LSZH
Jacket Color: Black/Grey/Violet/Orange
Packing: 305M
Item Code: 6A531BLB
| tmt global Color |
tmt global Aqua Color ,tmt global Black Color ,tmt global Blue Color ,tmt global Gray Color ,tmt global Green Color ,tmt global Orange Color ,tmt global Red Color ,tmt global Violet Color ,tmt global white Color ,tmt global Yellow Color |
|---|---|
| Brand |
TMT Global |
TMT Global Cat6a Network Cable 23awg 4 twisted pair S-FTP LSZH 305m
TMT Global Technology LTD aims to provide the best quality products, including structured cabling systems, copper and fiber optics range, access control systems, gate automation, lighting control systems, PIR motion sensors, UHF long-range readers, automatic parking solutions, SMATV systems, audio video intercom systems, audio visual systems, and public address systems. Industrial and building automation cables and accessories lead to customer satisfaction and reliability.
All TMT Global products meet or exceed rigorous industry and regulatory standards for quality, reliability, and efficiency. From design and fabrication to finished product assembly, each phase in the manufacturing process is rigorously monitored and measured to ensure the highest quality, durability, and operating excellence.Cat6a Ethernet Cable 23awg 4 twisted pair S-FTP LSZH 305m
| PHYSICAL AND MECHANICAL PROPERTIES | |
| Basic Conductor | TMT Copper |
| Conductor Size | 23AWG |
| Insulation | HDPE |
| Number Of Insulated Conductors | 8, Twisted In 4 Pairs |
| Color Code Of Pairs | Blue X White/Blue, Orange X White/Orange, Green X White/Green, Brown X White/Brown |
| Outer Jacket | LSZH |
| Standard Jacket Color | Gray/Blue/Black |
| Standard Surface Marking | Includes TMT GLOBAL P/N, Cable Description, Meter Mark And Batch Number |
| Pulling Force | 100 N MAX |
| Short Term Bend Radius | 6xOD (Mm) |
| Storage Temperature | -20 To +80C |
| Temperature Operating Range | -20 To +60C |
| Installation Temperature Range | 0 To +50C |
| Flame Test | IEC 60332-1 |
| ELECTRICAL SPECIFICATIONS | |||
| Characteristic Impedance | 100―6 Ohm @ 1-100 MHz | Dielectric Strength | 1500 Volts/1 Minute Min Rms |
| DC Resistance | 93 Ohm/Km Max. | Velocity Of Propagation (NVP) | 67-69% |
| Resistance Unbalance | 2% Max. | Insulation Resistance | 5000 Mega Ohm•Km Min. @ 500 Vdc |
| Mutual Capacitance | 5.6 NF/100m Max. @ 1 KHz | Coupling Attenuation | IEC 61156-5 TYPE III |
| Cap. Unbalance (Wire To Ground) | 1500 PF/Km Max. @ 1 KHz. | ||
| Voltage Rating | 72 Vdc Max. | ||
1 review for Cat6a Ethernet Cable 23awg 4 twisted pair S-FTP LSZH 305m
Related products
23awg Cat6a 4 twisted pair DJ-UTP Network Cable 305m
Cat6a 23awg 4 twisted pair F-UTP Network Cable 305m
Cat6a 23awg 4 twisted pair S-FTP Network Cable 305m
khan –
The TMT Global Network Cable 305m 23AWG FTP LSZH is an excellent choice for both residential and commercial networking needs. Its 23AWG construction ensures minimal signal loss, allowing for high-speed data transmission over long distances. The foil twisted pairs (FTP) design provides enhanced protection against electromagnetic interference, ensuring a stable connection.
Additionally, the Low Smoke Zero Halogen (LSZH) material used in its construction makes it safer for indoor use, as it emits minimal smoke and toxic gases in the event of a fire. With 305 meters of cable, it offers ample length for various installation requirements. Overall, the TMT Global Network Cable is a reliable and efficient solution for users seeking high-quality network performance.
