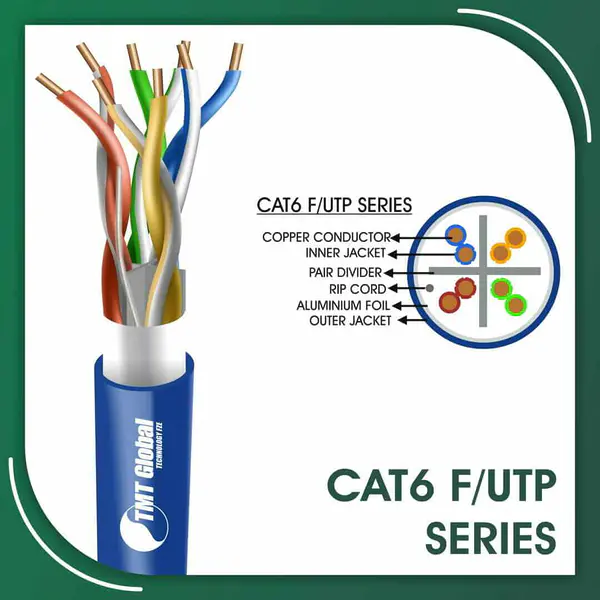

Cat6 f utp 6xxx2B PVC Cable 23 awg 4 pair 305m
$0.00
Standards:Â ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -E)
General Specification:
Conductor: BARE Copper
Conductor Size: 23AWG
No. Of Pairs: 4 twisted pairs
Overall Coverage: Polyester-aluminum tape
Outer Jacket: PVC
Jacket Color: Black/Grey/Violet/Orange
Packing: 305m
Item Code:
TMT Global Cat6 f utp 6xxx2B PVC Cable 23 awg 4 pair 305m
TMT Global Technology LTD aims to provide the best quality products, including structured cabling systems, copper and fiber optics range, access control systems, gate automation, lighting control systems, PIR motion sensors, UHF long-range readers, automatic parking solutions, SMATV systems, audio video intercom systems, audio visual systems, and public address systems. Industrial and building automation cables and accessories lead to customer satisfaction and reliability. All TMT Global products meet or exceed rigorous industry and regulatory standards for quality, reliability, and efficiency. From design and fabrication to finished product assembly, each phase in the manufacturing process is rigorously monitored and measured to ensure the highest quality, durability, and operating excellence.Cat6 f utp 6xxx2B PVC Cable 23 awg 4 pair 305m
ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-250 MHz
DC Resistance:Â 93 Ohm/Km max.
Resistance unbalance:Â 2% max.
Mutual Capacitance:Â 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground):Â 1600 pF/m max. @ 1 KHz.
Voltage rating:Â 72 Vdc max.
Dielectric strength:Â 1500 Volts/1 minute min rms
Velocity of Propagation (NVP):Â 67-69%
Propagation Delay Skew:Â 514 + 36/vf. nS/100m max @ 1-300 MHz
Insulation Resistance: 5000 Mega Ohm•Km min. @ 500 Vdc
Coupling attenuation:Â 40 dB min @ 30-100 MHz 40-20Log(f/100) @100-300 MHz
PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: Bare copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs:Â Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage:Â Polyester-aluminum tape
Drain wire:Â N
Outer Jacket:Â PVC
Standard Jacket Color:Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow./Aqua
Standard Surface Marking:Â Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force:Â 110 N max.
Short Term Bend Radius:Â 8xOD (mm)
Temperature operating range:Â -20 to +80C
Installation temperature range:Â 0 to +50C
Ordering Information
Item Name: Cat6 f utp 6xxx2B PVC Cable 23 awg 4 pair 305m
| Color |
Aqua ,Black ,Blue ,Green ,Grey ,Orange ,Red ,violet ,White ,Yellow |
|---|
