ethernet cable color code cat 6 & cat6 UTP Cable 305m

Description

TMT Global ethernet cable color code cat 6 & cat6 UTP Cable 305m

TMT Global ethernet cable color code cat 6 & cat6 UTP Cable 305m are Manufactured Tested and Complied with crossover cable t568b standards coding of ethernet cables cat5 cat5e cat6 patch cable color color scheme t568a and t568b network connectivity orange white green white wiring color code green ethernet color coding of ethernet wire pairs color coding is essential IEC 60332-1-2 EN 50173-1:2011 ISO/IEC11801:2011(Ed. 2.2) ANSI/TIA/EIA-568.2-D IEC61935-2:2010(Ed.3.0) EN 50173-2:2007 including Amendment A1:2010 Requirements for Patch Cord Assemblies and Provide High Performance levels for structured cabling systems.

APPLICATION

• 10BASE-T, 100BASE-TX Fast Ethernet,
• 1000BASE-T (IEEE802.3
• 100VG-AnyLAN (IEEE802.12)
• 550 MHz Broadband Video
• Voice, T1, ISDN
• 155/ 622 Mbps ATM
• Power over Ethernet (POE)

GENERAL SPECIFICATION

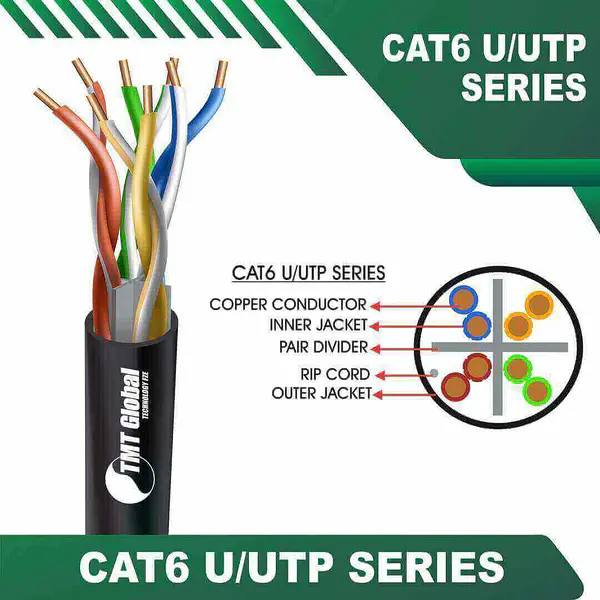

4 Pairs Unshielded Twisted Pair (UTP) Cable
Gold Plated: 30U”
Color Code: Aqua/Black/Blue/green/Grey/Orange/Red/Violet/White/Yellow r custom color
Length : 0.12/0.15/0.50/1/2/3/5/8/10/15/20/25/30/40/50/70/100/meter r custom Length
Contact blade: Phosphor Bronze
Insulation Material: HD-PE-PVC-LSZH
Jacket Material: PVC UL94V-0

PHYSICAL AND MECHANICAL PROPERTIES
Conductor Resistance: ≤5Ω – ≤20Ω
Insulation Resistance: ≥10MΩ
Characteristic Impedance: 100 ― 6 Ohm @ 1-250MHz -1-500 MHz
Contact Resistance: 20 m Ohm max
Resistance Unbalance: 2% max
Dielectric strength: 1000 volts/1 minute min rms
Cable to Plug Tensile Strength: 9 Kgf (90N) min
Durability: 750
Temperature Operating Range: -25°C to 70°C
Country Of Origin: Made in UAE
By Fahad Cables Industry FZE
