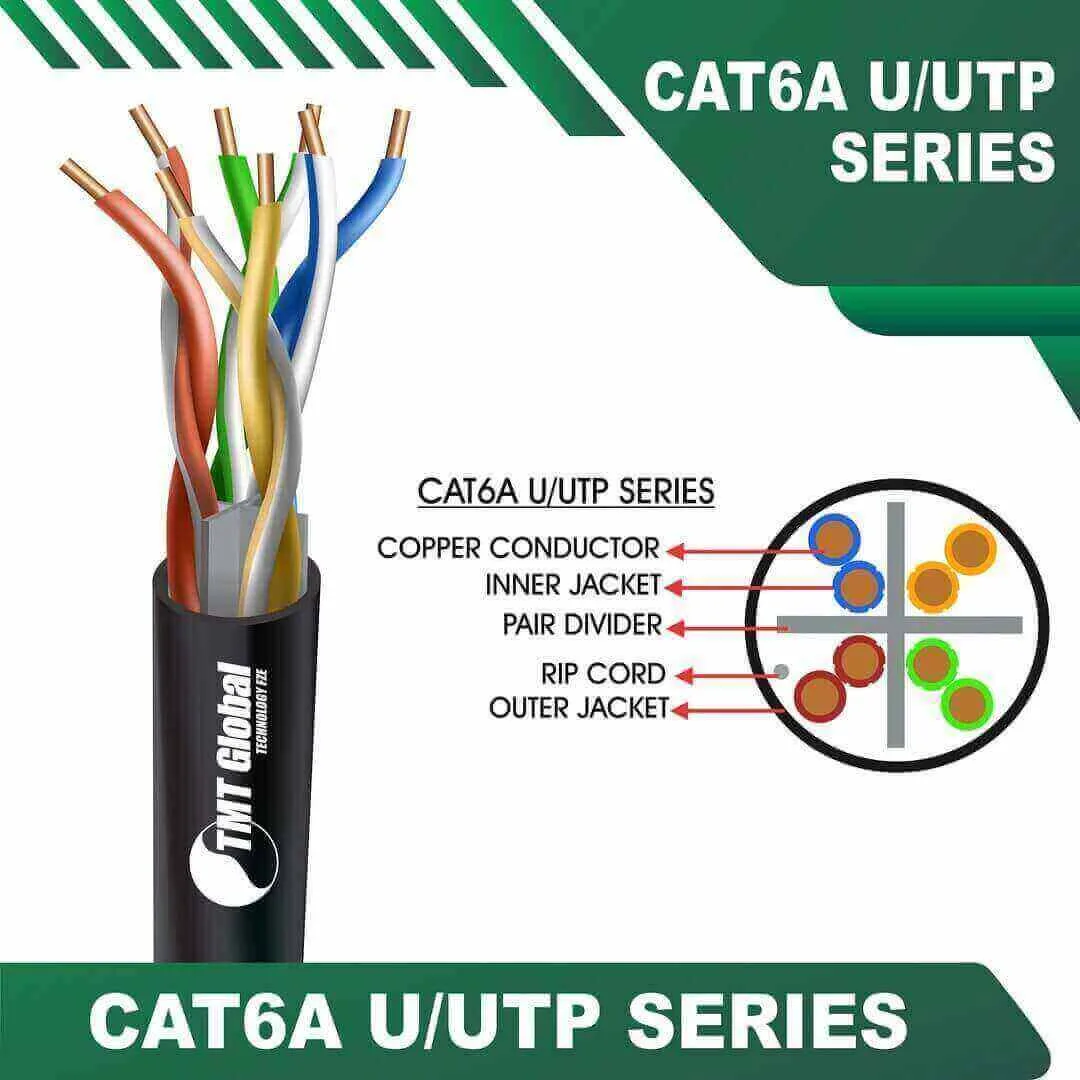

Cat6a 4Pair 23awg U/UTP Outdoor Network Cable
$650.00
Standards: ANSI/TIA/568.2-D (2) CENELEC EN 50288-5 ( 3) IEC 61156-5 (ISO/IEC-11801 Class Ea)
General Specification:
• Conductor: BARE Copper
• Conductor Size: 23AWG
• No. Of Pairs: 4 twisted pairs
• Overall Coverage: N/L
• Outer Jacket: PE
• Jacket Color: Black
• Packing: 50/100/200/305/500/meter
• Item Code: 6A137BOK
Description
TMT Global Cat6a 4Pair 23awg U/UTP Outdoor Network Cable
The TMT Global Cat6a 23awg 4 Twisted Pair U-UTP lszh Network Cable is a premium choice for those in search of reliable and high-quality building automation solutions. Spanning 305 meters, this PVC cable is meticulously manufactured, tested, and complies with stringent standards including IEC 60332-1-2 and ISO/IEC 11801:2011. Its flexible construction allows for effortless installation in narrow spaces,
making it ideal for a variety of applications such as CCTV systems, audio-video intercoms, public address systems, and smart home automation. This versatile cable not only supports high-performance structured cabling systems but also meets complex specifications across multiple industries, ensuring seamless connectivity and communication for any indoor or outdoor setup. Cat6a 4Pair 23awg U/UTP Outdoor Network Cable
APPLICATION
10BASE-T, 100BASE-TX Fast Ethernet,
1000BASE-T (IEEE802.3
100VG-AnyLAN (IEEE802.12)
550 MHz Broadband Video
Voice, T1, ISDN
155/ 622 Mbps ATM
Power over Ethernet (POE) POE+
General Description:
Conductor: Bare Copper
Conductor Size: 23AWG
No. Of Pairs: 4 twisted pairs
Overall Coverage: N/L
Outer Jacket: PE
Jacket Color: : Black
Packing: 50/100/200/305/500/ Meter Box/Reel
Standards
EIA/TIA-568
ISO/IEC 11801 Class E
IEC 61156-5 , EN 50173-1
EN 50288-6-1
COLOUR CODE
1.Blue – White or white with color stripe
2.Orange – White or white with color stripe
3.Green – White or white with color stripe
4.Brown – White or white with color stripe
| ELECTRICAL SPECIFICATIONS | |||
| Characteristic Impedance | 100±6 Ohm @ 1-500 MHz | Dielectric strength | 1500 Volts/1 minute min rms |
| Loop Resistance | 25 | Velocity of Propagation (NVP) | 67-69% |
| Resistance unbalance | 2% max. | Propagation Delay | 534 + 36/vf. nS/100m max @ 1-500 MHz |
| Mutual Capacitance | 5.6 nF/100m Max. @ 1 KHz | Propagation Delay Skew | 45 nS/100m max @ 1-500 MHz |
| Cap. Unbalance (wire to ground) | 1500 pF/Km max. @ 1 KHz. | Insulation Resistance | 5000 Mega Ohm•Km min. @ 500 Vdc |
| Voltage rating | 72 Vdc max. | Coupling attenuation | 40 dB min @ 30-100 MHz 40-20Log(f/100) @100-300 mhz |
| PHYSICAL AND MECHANICAL PROPERTIES | ||
| Basic Conductor | Bare copper | |
| Conductor Size | 23AWG | |
| Insulation | HDPE | |
| Number of insulated conductors | 8, twisted in 4 pairs | |
| Color Code of Pairs | Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown | |
| Outer Jacket | PE compound | |
| Standard Jacket Color | Aqua/Black/Blue/green/Grey/Orange/Red/Violet/White/Yellow r custom color | |
| Standard Surface Marking | Includes TMT Global Item Code, cable description, Meter mark and Model Number | |
| Pulling force | 100 N/mm2 max. | |
| Short Term Bend Radius | 6xOD (mm) | |
| Storage Temperature | -20 to +80C | |
| Temperature operating range | -20 to +80C | |
| Installation temperature range | 0 to +50C | |
| Flame Test | IEC 60332-1 | |
| Ordering Information | ||
| Model No | Item Code | Description |
| TMT-4063 | 6A137BOK | 23AWG 4PAIR CAT6A U/UTP INDOOR/OUTDOOR CABLE 305M |
